Запчасти Case IH MAGNUM 250 (90.116.AC[05]) - VAR- 420362 - REAR FENDERS - WIDE 2.55 (90) - PLATFORM, CAB, BODYWORK AND DECALS

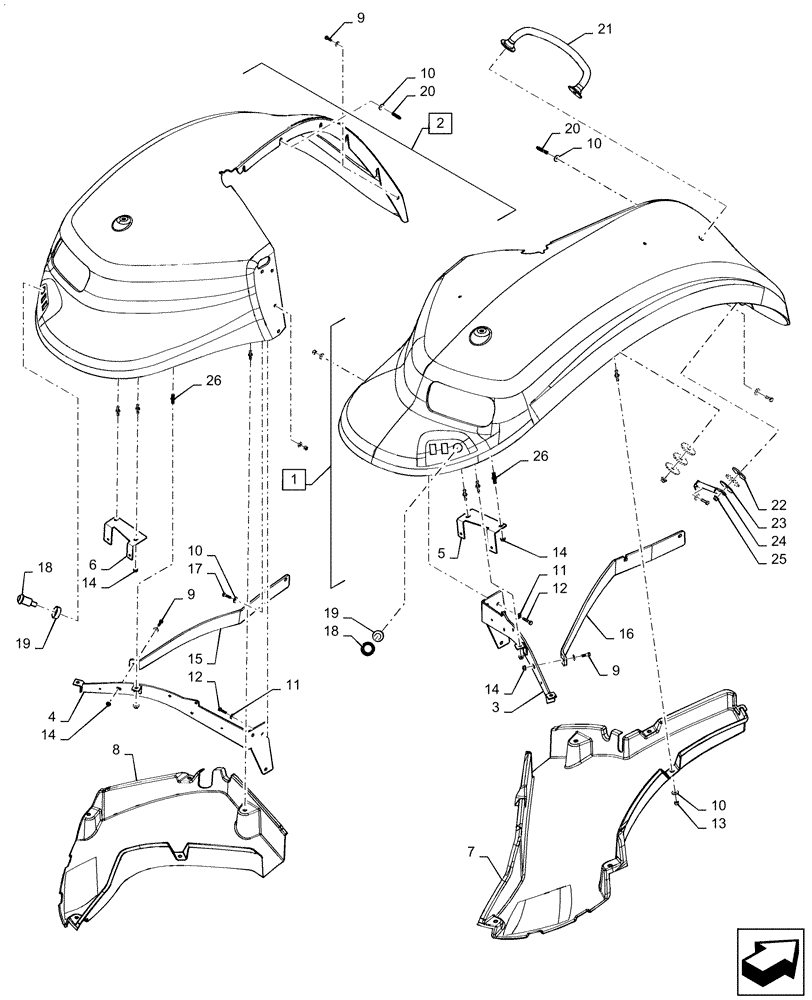

Схема запчастей Case IH MAGNUM 250 - (90.116.AC[05]) - VAR- 420362 - REAR FENDERS - WIDE 2.55 (90) - PLATFORM, CAB, BODYWORK AND DECALS
16
22
9
24
18
20
5
9
14
14
25
26
19
12
2
10
4
23
7
10
1
14
8
21
10
26
18
6
17
10
19
14
13
9
20
3
11
11
15
12

Артикул

Название

Примечание

Количество

1

47606067

FENDER

RH Wide w/Grab Handle; Incl 26

1шт.

2

47606036

FENDER

LH Wide; Incl 26

1шт.

3

47406518

BRACKET

RH Wide Fender Support

1шт.

4

47406539

BRACKET

LH Wide Fender Support

1шт.

5

87739798

BRACKET

RH Light Mounting

1шт.

6

87739799

BRACKET

LH Light Mounting

1шт.

7

87710353

COVER

RH Wide Fender Underside Cover

1шт.

8

87703709

COVER

LH Wide Fender Underside Cover

1шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

10шт.

10

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

24шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

14шт.

12

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

20шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

10шт.

15

87702627

BRACKET

LH Fender Stiffener

1шт.

16

87710391

BRACKET

RH Fender Support

1шт.

17

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

18

82025543

PTO SWITCH

Remote PTO

2шт.

19

82013932

GUARD

PTO Remote Switch

2шт.

20

87477361

STUD

Double End M8 x 1.25

2шт.

21

47436677

HANDRAIL

Fender

1шт.

22

47437064

RUBBER WASHER

Fender Handrail Mounting Pad

4шт.

23

84205720

PLATE

Tank Joining

2шт.

24

47457533

SUPPORT

Wide Fender Handle Support

1шт.

25

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

26

237275A1

STUD

Double Ended Hi-Lo

20шт.

Выбрано товаров: 26
