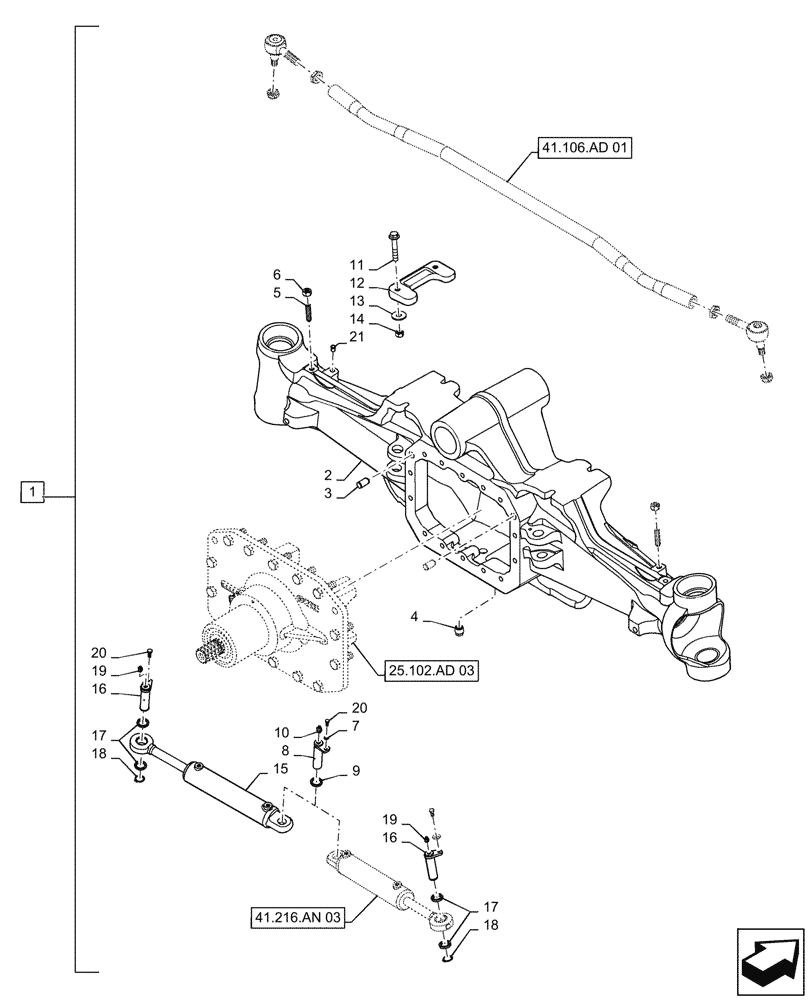

Запчасти Case IH MAGNUM 250 (25.100.AD[04]) - VAR- 429286 - FRONT AXLE ASSY, CL 4.5 STANDARD (25) - FRONT AXLE SYSTEM

1

84498469

STEERING AXLE

Complete With Differential And Planetaries, Incl 2 - 21, Continued on Figure 27.100.AD[08]

1шт.

2

84270859

STEERING AXLE

1шт.

3

5174376

DOWEL,M16 x 30

2шт.

4

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

5

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

6

16101511

NUT,M12 x 1.25, Cl 8

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

11

844-12070

BOLT,Hvy Hex, M12 x 70mm, Cl 8.8

4шт.

12

297333A2

BLOCK ASSY.

Oscillation Stop

2шт.

13

495-21069

WASHER,5/8"

4шт.

14

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

4шт.

15

5198883

STEERING CYLINDER,Double Acting, 25mm Rod, 232.5mm Stroke

2шт.

16

5171707

PIN,24.97mm OD x 91mm L

2шт.

17

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

18

11067376

SNAP RING,M25, Ext

2шт.

19

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

20

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

21

128209A1

PLUG

2шт.
