Запчасти Case IH MAGNUM 245 (04-02) - POWER DISTRIBUTION - BSN Z7RZ01521 (04) - ELECTRICAL SYSTEMS

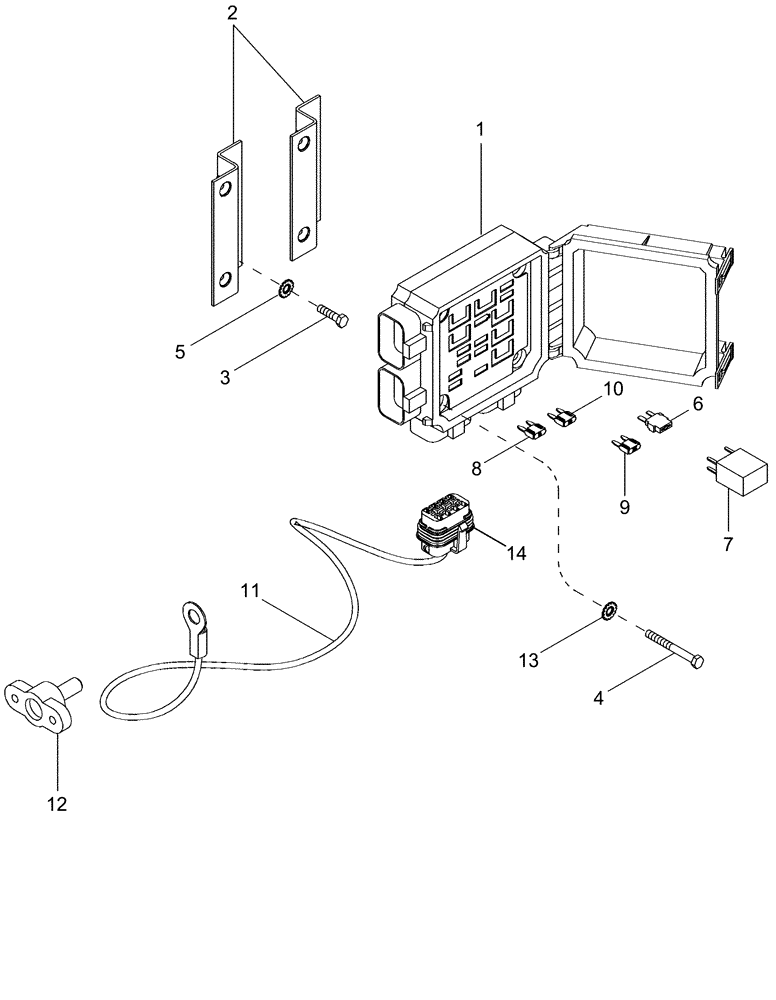

Схема запчастей Case IH MAGNUM 245 - (04-02) - POWER DISTRIBUTION - BSN Z7RZ01521 (04) - ELECTRICAL SYSTEMS
13
7
12
6
9
1
5
14
3
4
8
11
2
10

Артикул

Название

Примечание

Количество

1

441480A2

BOX, FUSE

Engine, Incl Fuses and Relays

1шт.

2

87410072

BRACKET

Fuse Box

2шт.

3

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

4шт.

4

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

2шт.

5

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

4шт.

6

416569A1

DIODE ELEMENT,7300W

1шт.

7

416570A1

RELAY

5шт.

8

121413A1

FUSE,15A, Mini, Blue

1шт.

9

121415A1

FUSE,25A, Mini, Clear

1шт.

10

121416A1

FUSE,30A, Mini, Green

1шт.

11

441479A2

HARNESS

Tractor Auxiliary Power, Inc. 14

1шт.

12

441483A1

TERMINAL CONNECTOR

Auxiliary Power

1шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

14

409107A1

ELEC CONNECTOR,Male, 8 Pin

Engine Harness

1шт.

Выбрано товаров: 14
