(88.055.03) - DIA KIT, FRONT HITCH HEADLAMPS RH DIP MX

Запчасти Case IH MAGNUM 245 (88.055.03) - DIA KIT, FRONT HITCH HEADLAMPS RH DIP MX (88) - ACCESSORIES

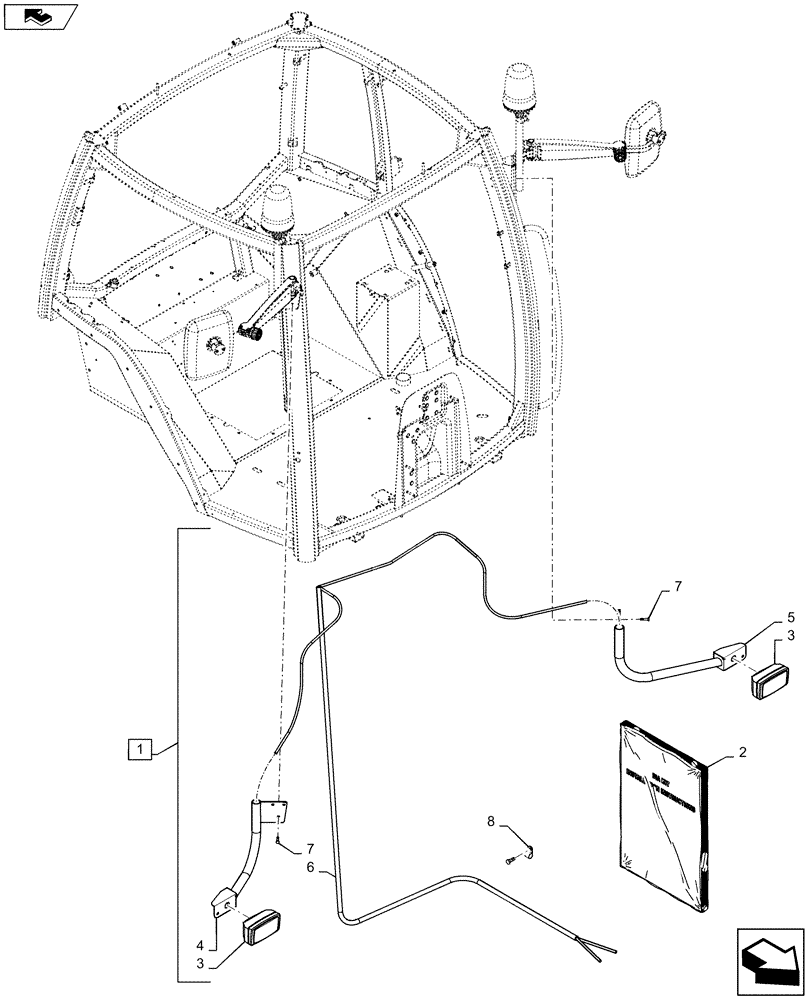

Схема запчастей Case IH MAGNUM 245 - (88.055.03) - DIA KIT, FRONT HITCH HEADLAMPS RH DIP MX (88) - ACCESSORIES
1
3
7
4
6
7
8
home
3
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87602050

DIA KIT, TRACTOR

Front Hitch Headlamps RH, Incl 2 - 8

1шт.

2

87604167

INSTRUCTION

Front Hitch Light Harness

1шт.

3

87403655

HEADLAMP,Halogen, 12V, 55W, Clear

2шт.

4

87378018

BRACKET

RH Front Hitch Light

1шт.

5

87378019

BRACKET

LH Front Hitch Light

1шт.

6

87603613

HARNESS

Front Hitch Headlights

1шт.

7

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

8

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

Clamp, Insulation

5шт.
