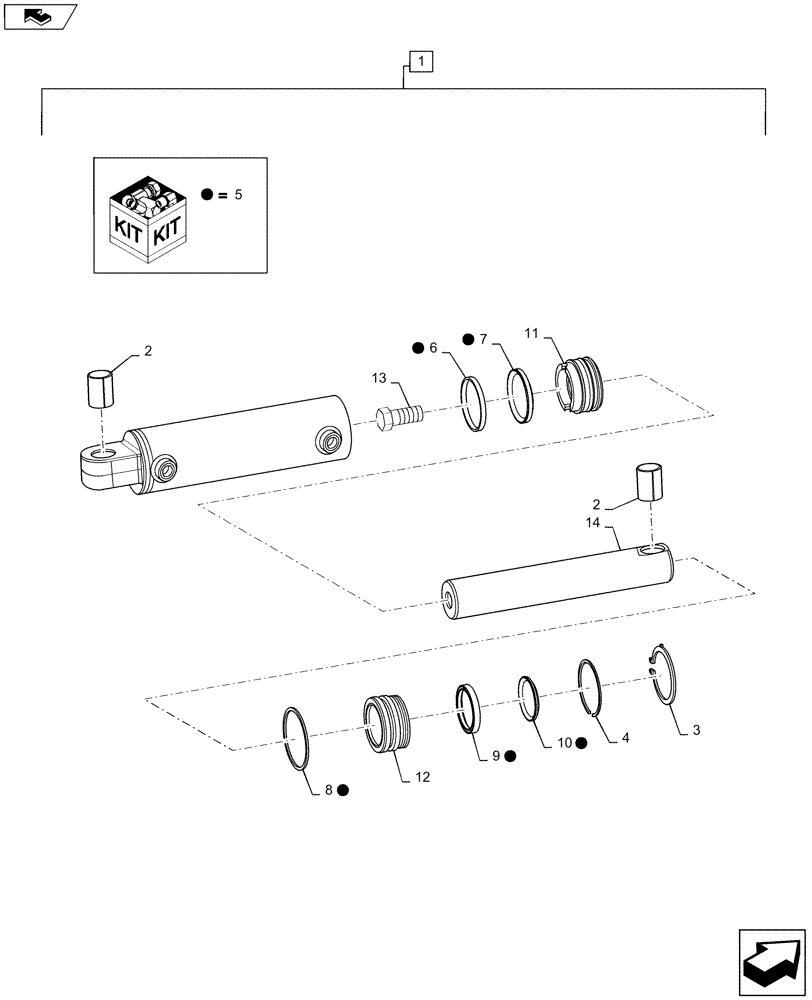

Запчасти Case IH MAGNUM 245 (08-30) - CYLINDER ASSEMBLY - HITCH (90 MM) (08) - HYDRAULICS

1

87542724

CYLINDER,Double Acting, 63.5mm Rod, 260.4mm Stroke

Assy, Hitch; Incl 2 - 14

1шт.

2

237443A1

BUSHING,34.96mm ID x 38.9mm OD x 50mm L

2шт.

3

87708870

RING

Seeger

1шт.

4

87708871

RING

Retaining

1шт.

5

87708867

SEAL KIT

Hitch Cylinder; Incl 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

GUIDE RING; Incl in 1, 5

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON SEAL; Incl in 1, 5

1шт.

8

NSS

NOT SOLD SEPARAT

DUAL RING; Incl in 1, 5

1шт.

9

NSS

NOT SOLD SEPARAT

ROD SEAL; Incl in 1, 5

1шт.

10

NSS

NOT SOLD SEPARAT

ROD WIPER; Incl in 1, 5

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON; Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND; Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

BOLT; Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

ROD; Incl in 1

1шт.
