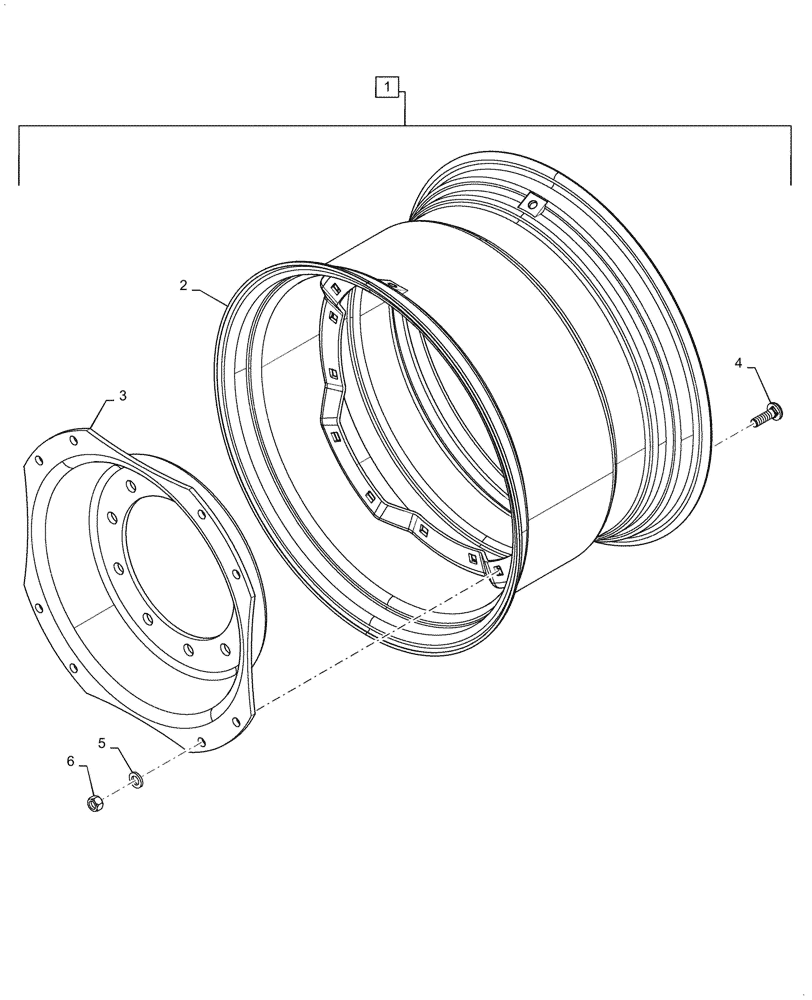

Запчасти Case IH MAGNUM 245 (05-36A) - FRONT WHEELS - MFD, 10 BOLT HUB, 8 BOLT OUTER (05) - STEERING

1

259367A2

WHEEL

W18Lx28, Inc. 2 - 6

2шт.

For Tires 600/65R28

1шт.

2

188350A2

RIM

1шт.

3

240677A1

WHEEL DISC

10 bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

1

259368A1

WHEEL ASSY

W13x30, Inc. 2 - 6

2шт.

For Tires 380/85R30, 14.9R30

1шт.

2

188338A1

RIM

WHEEL

1шт.

3

240677A1

WHEEL DISC

10 Bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

1

259369A1

WHEEL ASSY.

DW15Lx30, Inc. 2 - 6

2шт.

For Tires 480/85R30, 480/70R30, 420/90R30, 16.9R30

1шт.

2

188341A1

RIM

WHEEL

1шт.

3

240677A1

WHEEL DISC

10 Bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

1

87401232

WHEEL

DW20Ax30, Inc. 2 - 6

2шт.

For Tires 600/70R30

1шт.

2

87402304

RIM

1шт.

3

240677A1

WHEEL DISC

10 Bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

1

259372A1

WHEEL ASSY.

W13x34, Inc. 2 - 6

2шт.

For Tires 380/85R34, 14.9R34

1шт.

2

231998A1

RIM

WHEEL

1шт.

3

259373A1

WHEEL DISC

10 Bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

1

259370A1

WHEEL ASSY.

W15Lx34, Inc. 2 - 6

2шт.

For Tires 480/70R34, 540/65R34

1шт.

2

259416A1

RIM

WHEEL

1шт.

3

259373A1

WHEEL DISC

10 Bolt

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.
