Запчасти Case IH MAGNUM 245 (05-32) - FRONT AXLE PLANETARIES AND HUB - MFD, 10 BOLT HUB (05) - STEERING

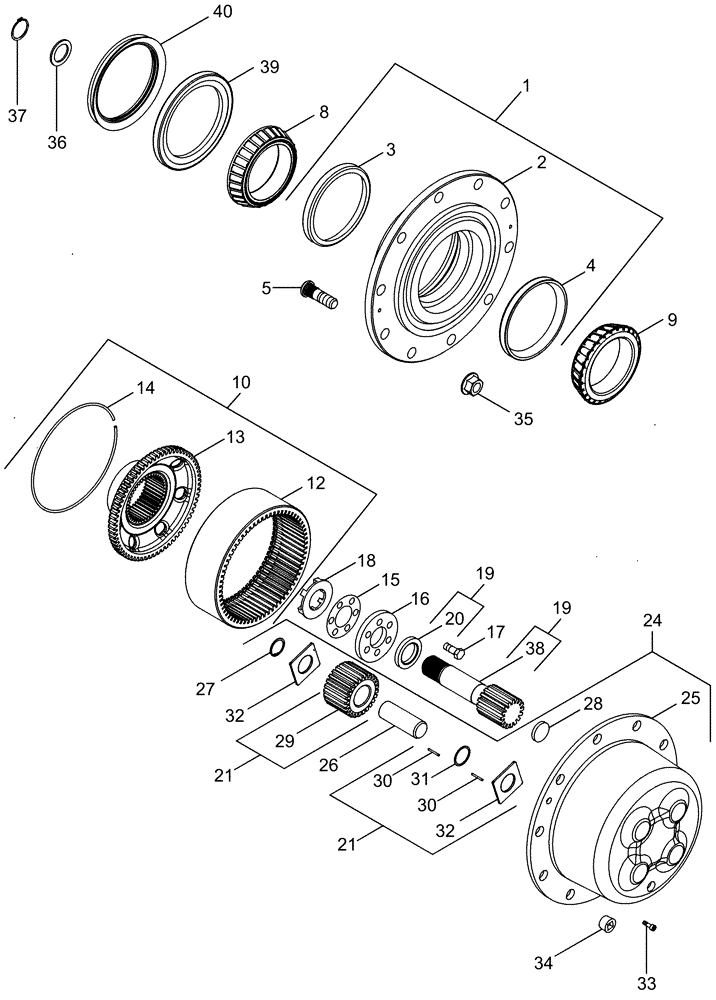

Схема запчастей Case IH MAGNUM 245 - (05-32) - FRONT AXLE PLANETARIES AND HUB - MFD, 10 BOLT HUB (05) - STEERING
37
36
25
19
16
8
24
21
18
10
34
19
35
2
31
33
32
39
9
30
38
32
27
29
3
1
20
28
40
26
30
15
5
13
4
12
21
14
17

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

HUB ASSEMBLY, Order Components

2шт.

2

295165A1

HUB

2шт.

Axle BSN Z7RZ02024

1шт.

2

87588833

HUB

2шт.

Axle ASN Z7RZ02024

1шт.

3

1277344C1

BEARING CUP

2шт.

4

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

2шт.

5

231023A1

STUD,M20 x 1.5 x 67mm, Class 8.8

20шт.

8

1277343C1

ROLLER BEARING,107.963 mm ID x 158.763 mm OD x 23.122 mm

2шт.

9

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

2шт.

10

281984A1

RING GEAR

Inc. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

RING, Gear

1шт.

13

NSS

NOT SOLD SEPARAT

HUB

1шт.

14

NSS

NOT SOLD SEPARAT

RING, Retaining

1шт.

15

1981236C1

SHIM KIT

Inc. 15

2шт.

15

NSS

NOT SOLD SEPARAT

SHIM .002

5шт.

15

NSS

NOT SOLD SEPARAT

SHIM .005

5шт.

15

NSS

NOT SOLD SEPARAT

SHIM .010

5шт.

15

NSS

NOT SOLD SEPARAT

SHIM .020

5шт.

15

NSS

NOT SOLD SEPARAT

SHIM .030

5шт.

16

251190A1

LARGE PLATE

PLATE, LARGE

2шт.

17

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

12шт.

18

310947A1

THRUST WASHER

2шт.

19

302198A2

SUN GEAR,Planetary Drive, STD

Inc. 20, 38

2шт.

19

302198A2R

REMAN-GEAR

Inc. 20, 38

2шт.

19

302198A2C

CORE-GEAR

Core Return Number

2шт.

20

NSS

NOT SOLD SEPARAT

WASHER, Thrust

1шт.

21

316330A2

FIP KIT

Inc. 29 - 32

1шт.

24

302251A2

GEAR WHEEL

Inc. 25 - 32

2шт.

24

302251A2R

REMAN-AXLE

Reman Gear wheel Inc. 25 - 32

2шт.

24

302251A2C

REMAN-AXLE

Return Number

2шт.

25

NSS

NOT SOLD SEPARAT

FLANGE

1шт.

26

302197A1

PIN,33.3mm OD x 92mm L

4шт.

27

100-21131

SNAP RING,1.312", Int, #131

4шт.

28

302184A1

HOLE PLUG BUTTON

1шт.

29

NSS

NOT SOLD SEPARAT

GEAR

4шт.

30

NSS

NOT SOLD SEPARAT

BEARING, Needle

288шт.

31

NSS

NOT SOLD SEPARAT

SPACER

4шт.

32

NSS

NOT SOLD SEPARAT

WASHER, Thrust

8шт.

33

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.

34

221-887

PLUG

3/4

2шт.

35

253212A1

NUT,M20 x 1.5, Class 10

20шт.

36

87403378

THRUST WASHER

2шт.

37

87403379

RING, SNAP

RING SNAP

2шт.

38

NSS

NOT SOLD SEPARAT

GEAR

1шт.

39

87311480

SEAL KIT

Hub Seal

1шт.

Axle BSN Z7RZ02024

1шт.

39

87588941

SEAL KIT

Hub Seal

1шт.

Axle ASN Z7RZ02024

1шт.

40

87588837

SEAL KIT

V-Ring Seal

1шт.
