Запчасти Case IH MAGNUM 245 (05-06) - HYDRAULIC SYSTEM - MFD DIFFERENTIAL LOCK - MX215, 245, 275, 305, MAGNUM 215, 245, 275, AND 305 (05) - STEERING

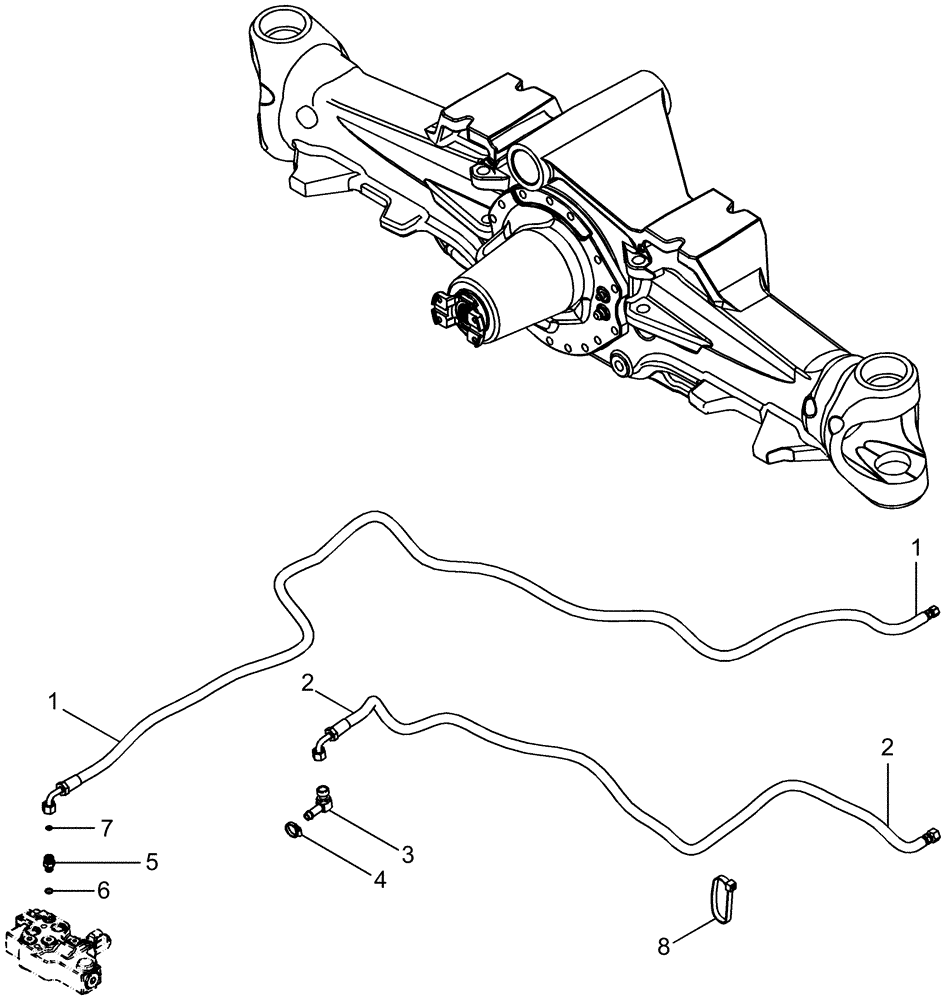

Схема запчастей Case IH MAGNUM 245 - (05-06) - HYDRAULIC SYSTEM - MFD DIFFERENTIAL LOCK - MX215, 245, 275, 305, MAGNUM 215, 245, 275, AND 305 (05) - STEERING
4
2
8
1
6
7
1
5
3
2

Артикул

Название

Примечание

Количество

1

414556A2

HOSE ASSY.,9.53mm ID x 3280mm L

Supply

1шт.

2

87445145

HOSE ASSY.

Return, Suspended Axle 10 Bolt Hub

1шт.

2

87605685

HOSE ASSY.

Front Diff Lock Return

1шт.

3

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

Standard Axle 10 Bolt Hub, Standard Axle 12 Bolt Hub, Suspended Axle 12 Bolt Hub

1шт.

4

214-1408

HOSE CLAMP,11.2mm - 19.8mm

Standard Axle 10 Bolt Hub, Standard Axle 12 Bolt Hub, Suspended Axle 12 Bolt Hub

1шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 6, 7

1шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Return Hose

2шт.
