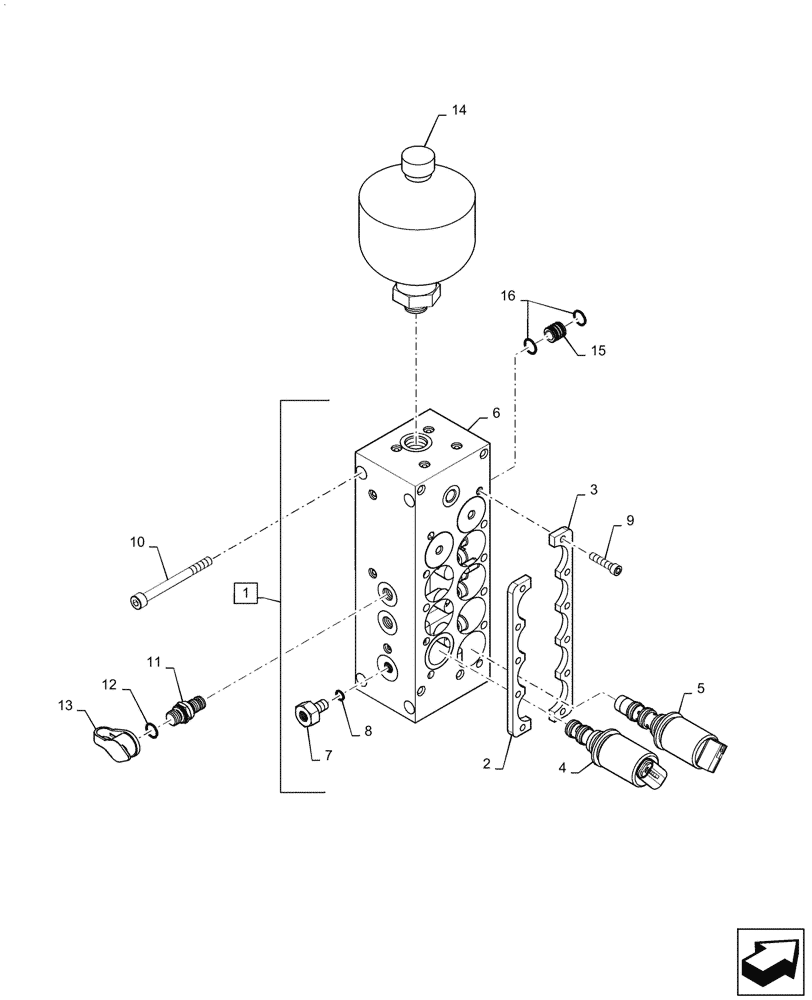

Запчасти Case IH MAGNUM 240 (21.505.AQ[01]) - VAR- 420104, 420105 - CONTROL VALVE ASSY - CVT (21) - TRANSMISSION

1

84123450

MANIFOLD VALVE

Incl 2 - 9

1шт.

2

87683403

PLATE

1шт.

3

47134564

FIXING PLATE

1шт.

4

87472229

CARTRIDGE

1шт.

5

87739558

SOLENOID VALVE,14W

8шт.

5

87739558R

REMAN-SOLENOID

8шт.

5

87739558C

CORE-SOLENOID

Return Number

8шт.

6

84125653

MANIFOLD VALVE

1шт.

7

84125654

HYD CONNECTOR

1шт.

8

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW Incl in 1

11шт.

10

14307124

SCREW,M8 x 1.25 x 90mm, Cl 8.8

4шт.

11

5185423

COUPLING

Incl 12

2шт.

12

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

13

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

2шт.

14

87314179

ACCUMULATOR,0.75L

1шт.

15

87561328

BUSHING,11mm ID x 13mm OD x 14mm L

Jumper, Valve to Hydro Housing

9шт.

16

14453080

O-RING,0.426" ID x 0.07"

18шт.
