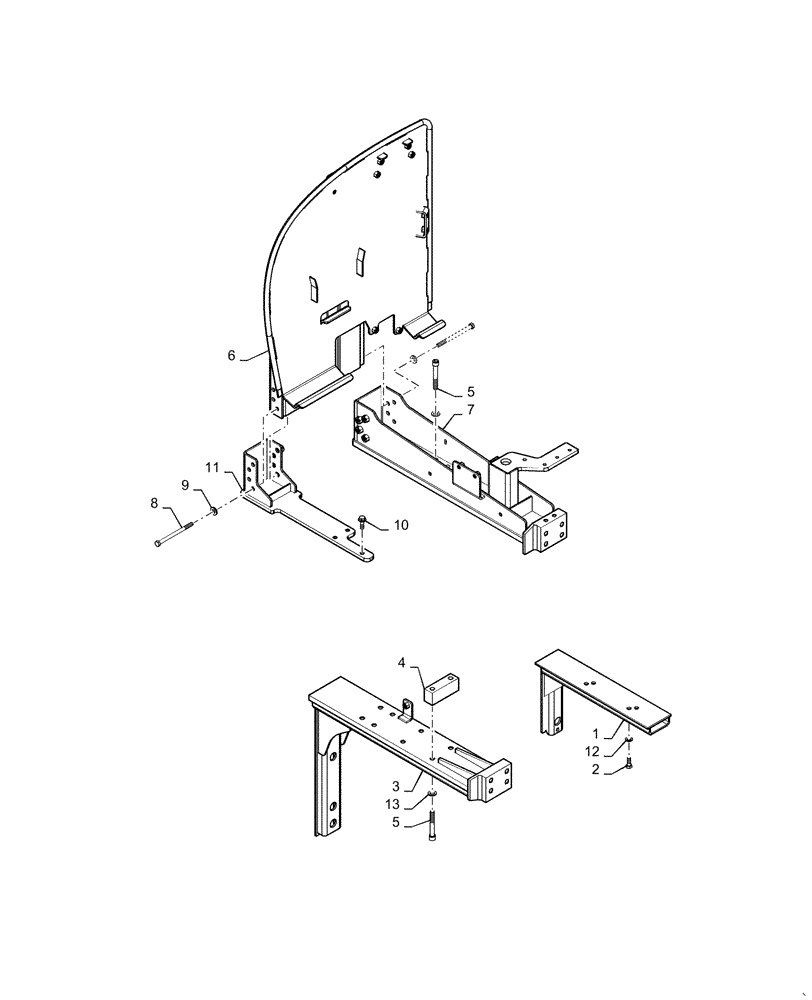

Запчасти Case IH MAGNUM 240 (90.150.AJ[02]) - FRONT ISOLATOR MOUNTS - CVT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87496282

SUPPORT

Fuel Tank

1шт.

2

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

3

84123200

PLATE

LH Front ISO Mount

1шт.

4

87731266

SPACER

Front LH

2шт.

5

87733388

HEX SOC SCREW,M14 x 1.5 x 100mm, Cl 10.9

8шт.

6

47566958

BRACKET

RH Fuel Tank Support

1шт.

7

47538053

BRACKET

Fuel Tank Support

1шт.

8

814-12160

BOLT,Hex, M12 x 1.75 x 160mm, Cl 8.8

8шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

10

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

3шт.

11

84595908

BRACKET

Fuel Tank Support

1шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

13

14496831

WASHER,15mm ID x 28mm OD x 2.5mm Thk

15 x 28 x 2.5 mm HTS ZND

8шт.
