Запчасти Case IH MAGNUM 240 (10.216.AI[02]) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

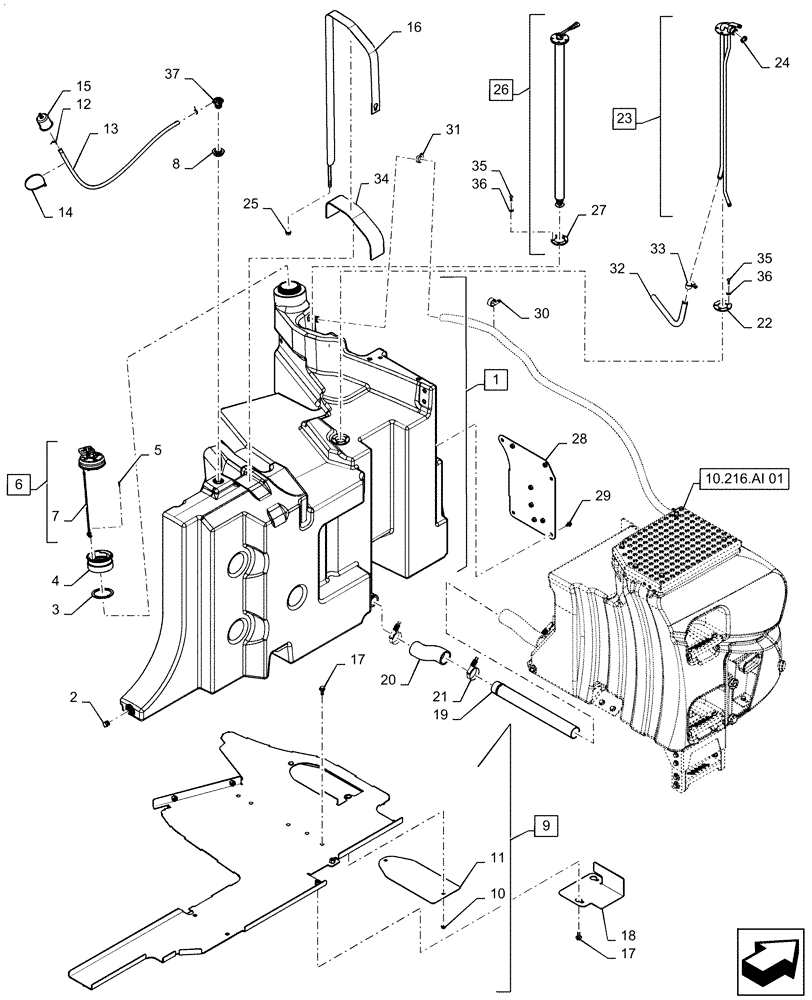

Схема запчастей Case IH MAGNUM 240 - (10.216.AI[02]) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE
5
33
19
31
14
28
37
10.216.ai 01
9
3
32
18
22
17
20
21
16
36
12
23
13
4
24
11
36
26
25
30
17
27
10
7
1
35
35
34
6
15
29
8
2

Артикул

Название

Примечание

Количество

1

47546688

FUEL TANK

Assy, LH; Incl 2 - 7

1шт.

2

84466043

DRAIN PLUG

Fuel Tank

1шт.

3

47396773

GASKET

Fuel Cap Adapter

1шт.

4

47396772

ADAPTER

Fuel Cap

1шт.

5

47429101

SELF-TAP SCREW

6-20 x 3/4 AB PAN C/R SST

1шт.

6

47421724

LOCKABLE FUEL CAP

Assy; Incl 7

1шт.

7

47421650

CHAIN

Fuel Cap Tether

1шт.

8

255094A1

GROMMET

Fuel Tank Roll Over Valve

1шт.

9

47543808

SUPPORT

Assy, LH Fuel Tank; Incl 10 - 11

1шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

11

47372358

ACCESS COVER

Service, UQS

1шт.

12

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

13

84182724

HOSE,6.35 mm ID x 924.00 mm, SAE 30R7

1шт.

14

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

15

87433010

BREATHER

Fuel Tank

1шт.

16

84122290

SECURING STRAP

Fuel Tank Support

1шт.

17

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

10шт.

18

84601401

SHIELD

Hose, Fuel Tank

1шт.

19

47532795

FUEL TUBE

1шт.

20

84601412

FUEL HOSE

Crossover

1шт.

21

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

22

87537695

GASKET

Fuel Sender

1шт.

23

47384776

PIPE

Assy, Fuel Supply/Return; Incl 24

1шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

26

84137594

SENDER UNIT

Fuel; Incl 27

1шт.

27

84603698

GASKET,5mm Thk

Sender

1шт.

28

84596317

BRACKET

SM Mount

1шт.

29

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

30

87682403

WIRE CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

J 25.4 mm Insul M10 Bolt

1шт.

31

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

Wormgear 20 x 32 mm STL ZND

1шт.

32

84197988

FUEL HOSE

Supply

1шт.

33

214-1510

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm, W/ Liner

1шт.

34

84122288

STRAP

Rubber Cushion

1шт.

35

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

10шт.

36

86509828

LOCK WASHER,M5

10шт.

37

275800A1

VALVE STEM

Roll Over Fuel Tank

1шт.

Выбрано товаров: 37
