Запчасти Case IH MAGNUM 240 (35.100.AR[05]) - COMMON TWIN FLOW 45CC (35) - HYDRAULIC SYSTEMS

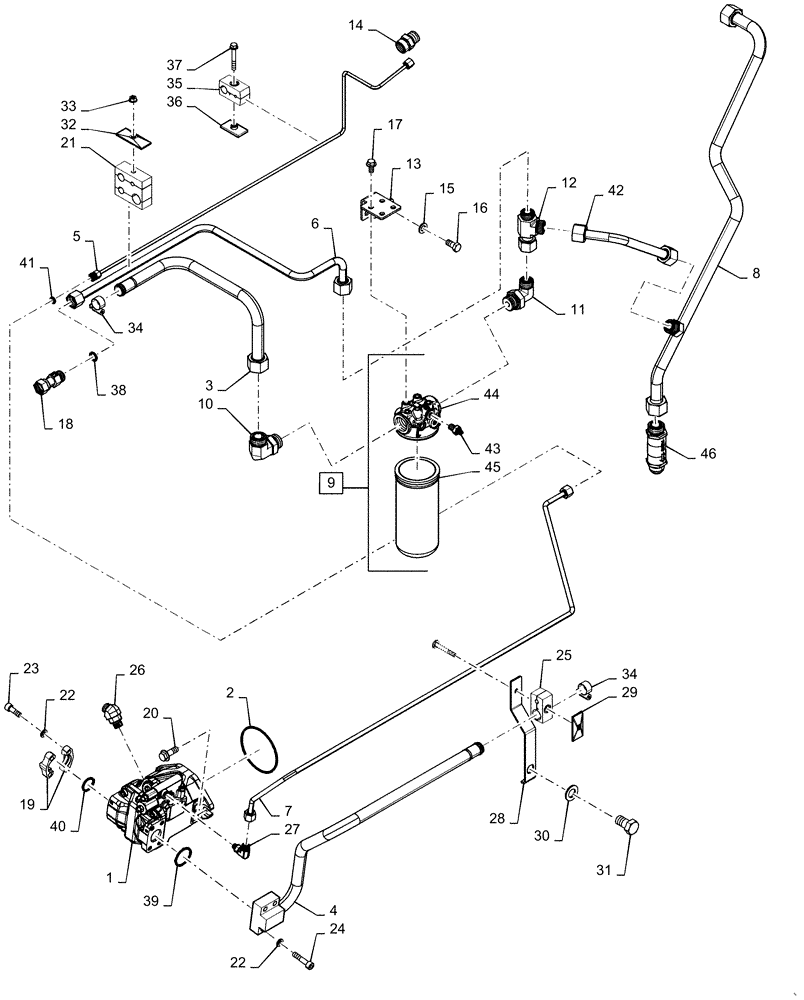

Схема запчастей Case IH MAGNUM 240 - (35.100.AR[05]) - COMMON TWIN FLOW 45CC (35) - HYDRAULIC SYSTEMS
34
20
29
42
16
6
14
24
46
19
10
15
40
26
45
12
3
44
30
9
18
27
11
28
34
5
1
37
2
43
22
38
23
32
7
31
21
36
22
8
4
41
13
25
35
33
17
39

Артикул

Название

Примечание

Количество

1

47609133

HYDRAULIC PUMP

455cc Piston LH

1шт.

2

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

3

47587953

TUBE

Suction Filter Outlet

1шт.

4

47628339

TUBE

Suction Front

1шт.

5

47694245

HYD TUBE

Load Sense Rear

1шт.

6

47609108

TUBE

Charge Pressure

1шт.

7

47588023

TUBE

Load Sense Front

1шт.

8

47752496

HYD TUBE

Remote Drain

1шт.

9

47810074

FILTER ASSY

Incl 43 - 45

1шт.

10

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

1шт.

11

86579698

90 ELBOW,1 3/16"-12 ORFS x M33 x 2 ORB

1шт.

12

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1шт.

13

47712997

BRACKET

Filter Mount

1шт.

14

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

15

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

16

86637974

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

18

47612453

CHECK VALVE

1шт.

19

70921115

HALF-FLANGE

Clamp

2шт.

20

87010705

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9, Full Thd

2шт.

21

47617626

CLAMP

Four Port

1шт.

22

892-11010

LOCK WASHER,M10

8шт.

23

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

24

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

25

87000142

CLAMP,2 Hoses

Two Hole

1шт.

26

86512032

ELBOW

45, ADJ -8 ORFS X 3/4 -16 ORB

1шт.

27

451226A1

90 ELBOW

7/16-20 ORB X 11/16-16 ORFS

1шт.

28

47596690

BRACKET

Support LH

1шт.

29

1347127C1

PLATE

Tube Clamp

2шт.

30

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

1шт.

31

73172048

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

1шт.

32

1186005

PLATE

Cover

1шт.

33

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

34

87482165

HOSE CLAMP,1" - 1.75", Worm Gear

Constant Torque

2шт.

35

87000143

CLAMP

Two Hole

1шт.

36

384871A1

PLATE

Hose Clamp

1шт.

37

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

38

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

39

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

40

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

41

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

42

47734969

HYD TUBE

Filter Inlet

1шт.

43

47817378

PRESSURE SWITCH

Filter Differential

1шт.

44

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Friction

1шт.

45

47607598

ELEMENT

1шт.

46

47752511

CHECK VALVE

1шт.

Выбрано товаров: 46
