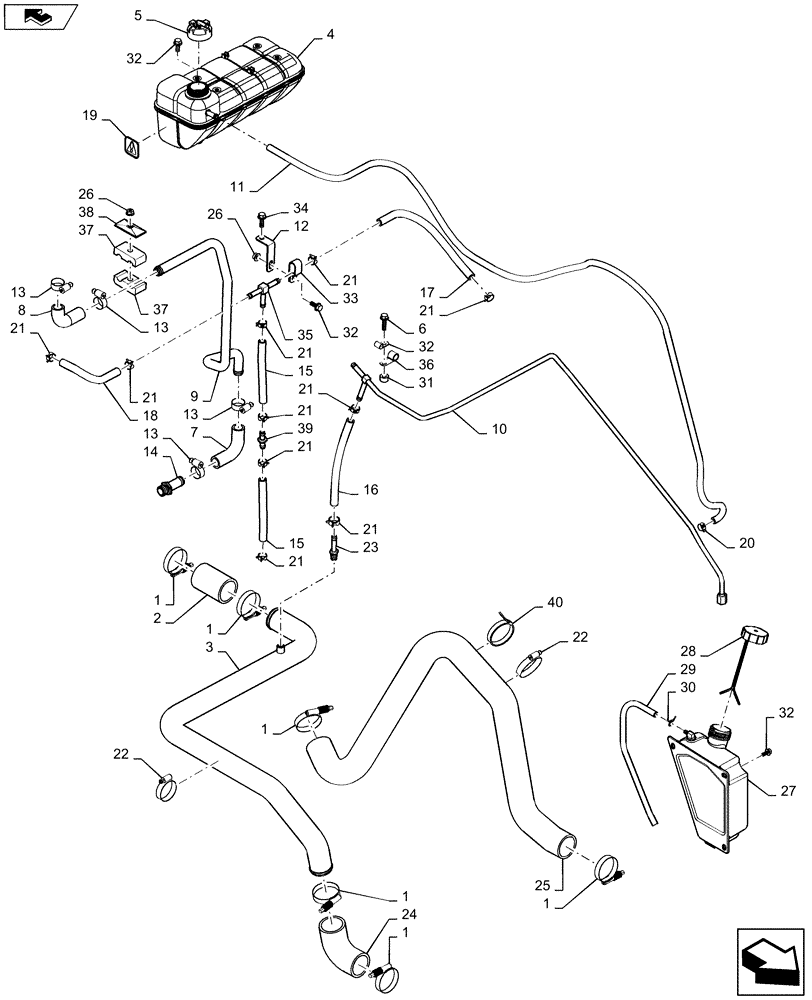

Запчасти Case IH MAGNUM 235 (10.400.BE[02]) - RADIATOR MOUNTING PARTS AND PLUMBING (10) - ENGINE

1

L115548

CLAMP,57.15mm - 79.38mm

Hose 2.250/3.125

6шт.

2

433405A1

RADIATOR HOSE,56.40 mm ID x 100.00, SAE J20 or SAE 20R4 CLASS D1

Engine Outlet

1шт.

3

84337923

TUBE

Upper Radiator

1шт.

4

82019588

RESERVOIR

1шт.

5

84172565

CAP

Degas Bottle 1.5 Bar

1шт.

6

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

7

84293591

RADIATOR HOSE

Lower, Deaeration

1шт.

8

84178842

RADIATOR HOSE

Lower, Deaeration

1шт.

9

84277810

TUBE

1шт.

10

84309338

HYD TUBE

Deaeration

1шт.

11

84268819

RADIATOR HOSE

Deaeration

1шт.

12

84178847

BRACKET

Bracket

1шт.

13

87487834

CLAMP,0.81" - 1.5"

Hose, 16 1.50/0.81 F SST 300

3шт.

14

217-398

FITTING,3/4" Hose Barb x 7/8" - 14 Male ORB

1шт.

15

84361235

HOSE

Radiator, Deaeration

2шт.

16

84361222

HOSE

Radiator, Deaeration

1шт.

17

84361220

HOSE,9.52mm ID x 300mm L, SAE 30R7

Radiator, Deaeration

1шт.

18

84361218

HOSE

Radiator

1шт.

19

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

41

83946774

DECAL

Vehicle Warning, Right Hand

2шт.

20

87589798

HOSE CLAMP

0.5"

1шт.

21

1348264C1

HOSE CLAMP

10шт.

22

214-3248

HOSE CLAMP,57mm - 79mm

2шт.

23

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

24

87381277

HOSE

Coolant

1шт.

25

84362319

RADIATOR HOSE

Outlet

1шт.

26

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

27

84276099

BOTTLE

Coolant Recovery

1шт.

28

238903A1

FILLER CAP

Coolant Recovery Bottle

1шт.

29

242070A1

HOSE,7.9mm ID x 450mm L, SAE 30R7

1шт.

30

214-1308

HOSE CLAMP,#8, 1/2", Spring

1шт.

31

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

1шт.

32

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

33

313445C1

CLAMP

1шт.

34

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

35

123949A1

TEE

Beaded Tube

1шт.

36

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

1шт.

37

118576A1

CLAMP

Tube

1шт.

38

1347127C1

PLATE

Tube Clamp

1шт.

39

84358941

NIPPLE

1/4"

1шт.

40

86991007

CABLE TIE,509mm L

CABLE STRAP 509 lg.

1шт.
