Запчасти Case IH MAGNUM 235 (88.035.06) - DIA KIT, MEGA-TWIN FLOW, CVT (88) - ACCESSORIES

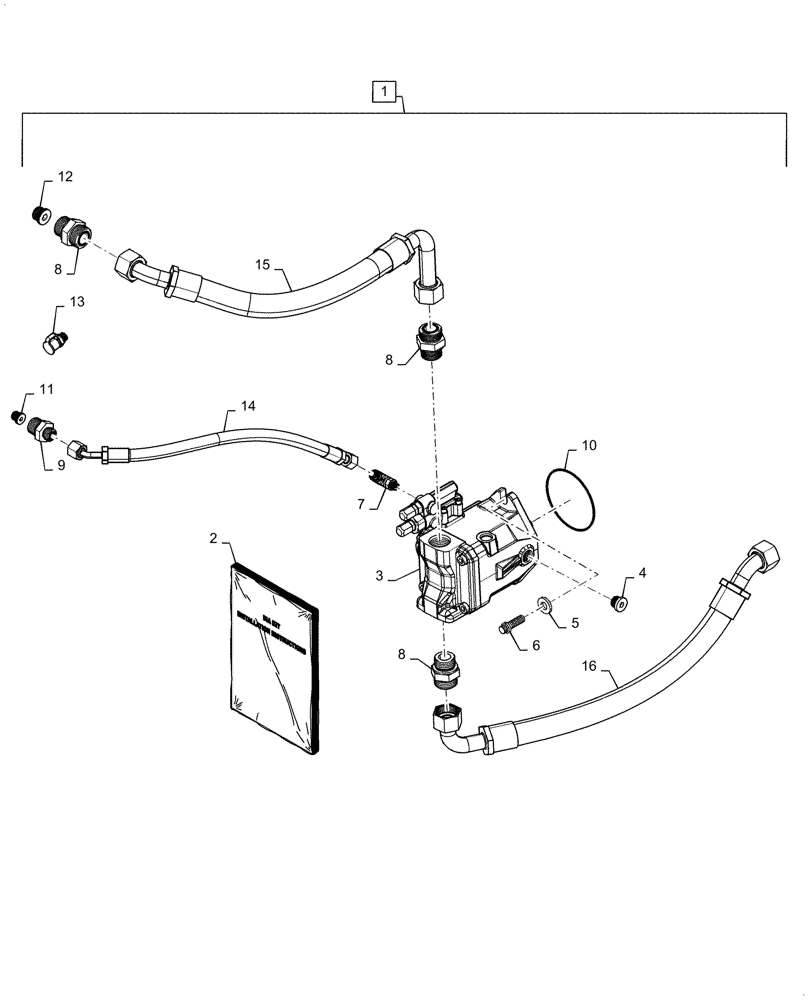

Схема запчастей Case IH MAGNUM 235 - (88.035.06) - DIA KIT, MEGA-TWIN FLOW, CVT (88) - ACCESSORIES
1
10
15
2
4
16
11
6
5
8
3
8
8
12
13
7
14
9

Артикул

Название

Примечание

Количество

1

47436826

SERVICE KIT

Mega/Twin Flow For CVT Tractors, Incl 2 - 15

1шт.

2

47436829

INSTRUCTION

Mega/Twin Flow For CVT Kit

1шт.

3

87538170

HYDRAULIC PUMP,111.5 LPM (29.5 GPM)

1шт.

4

87526196

PLUG

1шт.

5

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

6

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

2шт.

7

451226A1

90 ELBOW

1шт.

8

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

3шт.

9

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

1шт.

10

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

Mega-Twin Flow Pump Inlet

1шт.

11

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Auxillary Manifold Supply

1шт.

12

221579A1

PLUG,M22 x 1.5 ORB

Auxillary Manifold Load Sense

1шт.

13

178889A1

DIAGNOSTIC COUPLER

1шт.

14

84127530

HOSE,9.53mm ID x 480mm L, SAE 100R2

Aux Load Sense, STD Rear Axle

1шт.

14

84425556

HYDRAULIC HOSE,9.53mm ID x 600mm L, SAE 100R17

Aux Load Sense, HDRear Axle

1шт.

15

84497188

HYDRAULIC HOSE,25.4mm ID x 450mm L, SAE 100R17

Aux Supply, STD Rear Axle

1шт.

15

84605383

HYDRAULIC HOSE,25.4mm ID x 563mm L, SAE 100R17

Aux Supply, HDRear Axle

1шт.

16

47379669

HOSE,25.4mm ID x 700mm L, SAE 100R4

Pump Inlet

1шт.

Выбрано товаров: 18
