Запчасти Case IH MAGNUM 235 (55.680.AA[01]) - HARNESS, AUTOGUIDANCE OUTSIDE (55) - ELECTRICAL SYSTEMS

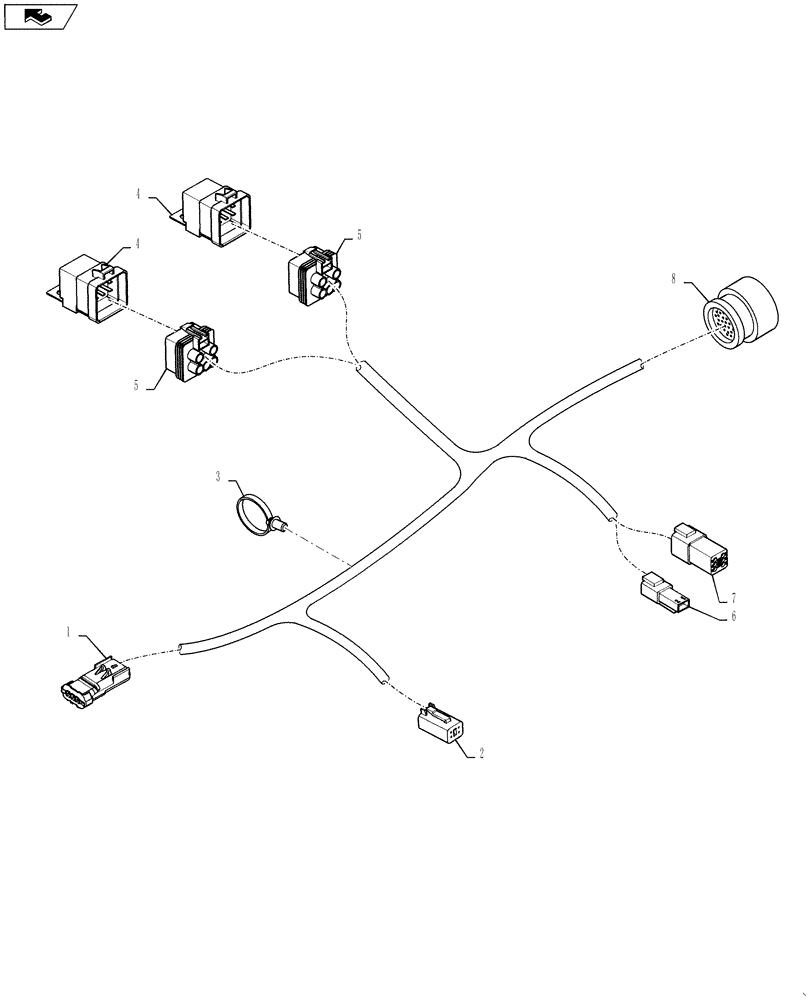

Схема запчастей Case IH MAGNUM 235 - (55.680.AA[01]) - HARNESS, AUTOGUIDANCE OUTSIDE (55) - ELECTRICAL SYSTEMS
6
4
2
1
3
5
5
4
7
8
home

Артикул

Название

Примечание

Количество

1

84354221

HARNESS

Autoguidance; Incl. 2 - 9

1шт.

2

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

3

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

1шт.

4

84179509

RELAY

2шт.

5

297910A1

ELEC CONNECTOR,Female, 5 Pin

2шт.

6

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

7

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

8

380838A1

ELEC CONNECTOR,Male, 31 Pin

1шт.

9

87382911

WIRE CONNECTOR,Male, 3 Cavities

1шт.

Выбрано товаров: 9
