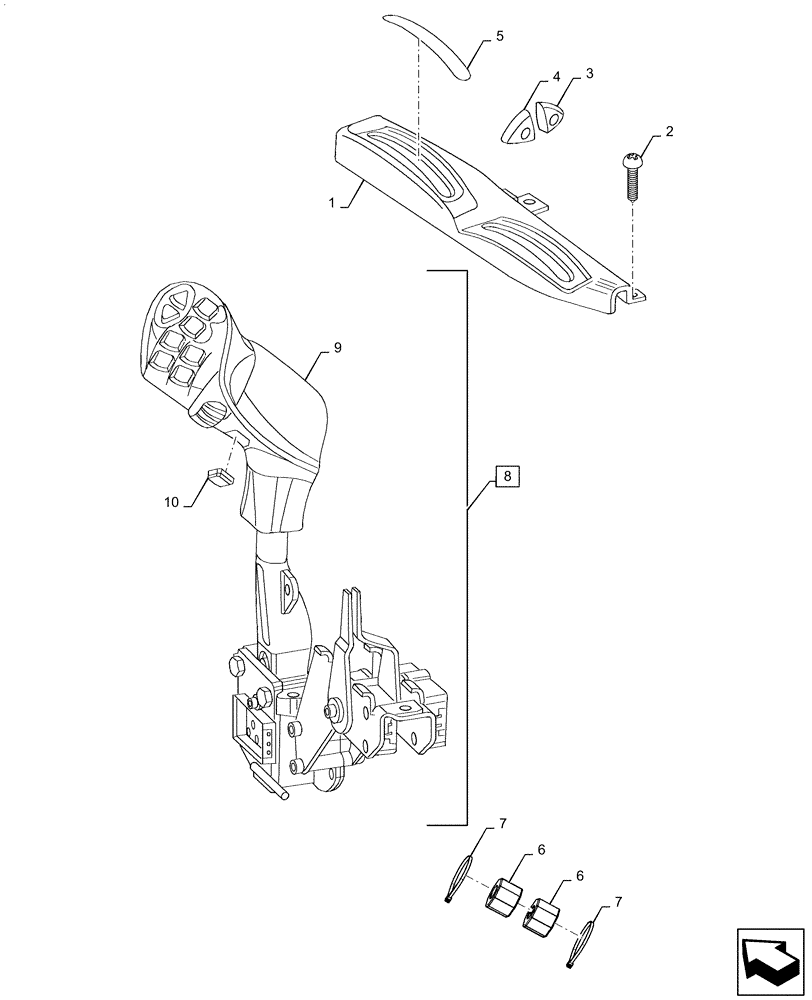

Запчасти Case IH MAGNUM 235 (55.512.CS[07]) - ARMREST CONTROL - MULTI-FUNCTION HANDLE (MFH) ASSEMBLY, CVT (55) - ELECTRICAL SYSTEMS

1

84122980

BEZEL

CVT Throttle

1шт.

2

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

2шт.

3

84229449

KNOB

RH Throttle

1шт.

4

84202341

KNOB

LH Throttle

1шт.

5

84165457

DECAL

Throttle, Orange

1шт.

6

47438090

MAGNETIC CORE

Ferrite

2шт.

7

14560287

CABLE TIE,207.00mm L

2шт.

8

84567685

JOYSTICK

MFH Lever, Multi Function Handle, CVT, Incl 9 - 10

1шт.

9

84493604

PAD SET

Rubber Grip

1шт.

10

84238354

CAP

EOR Plug

1шт.

11

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

Not Illustrated

4шт.

12

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

Not Illustrated

2шт.
