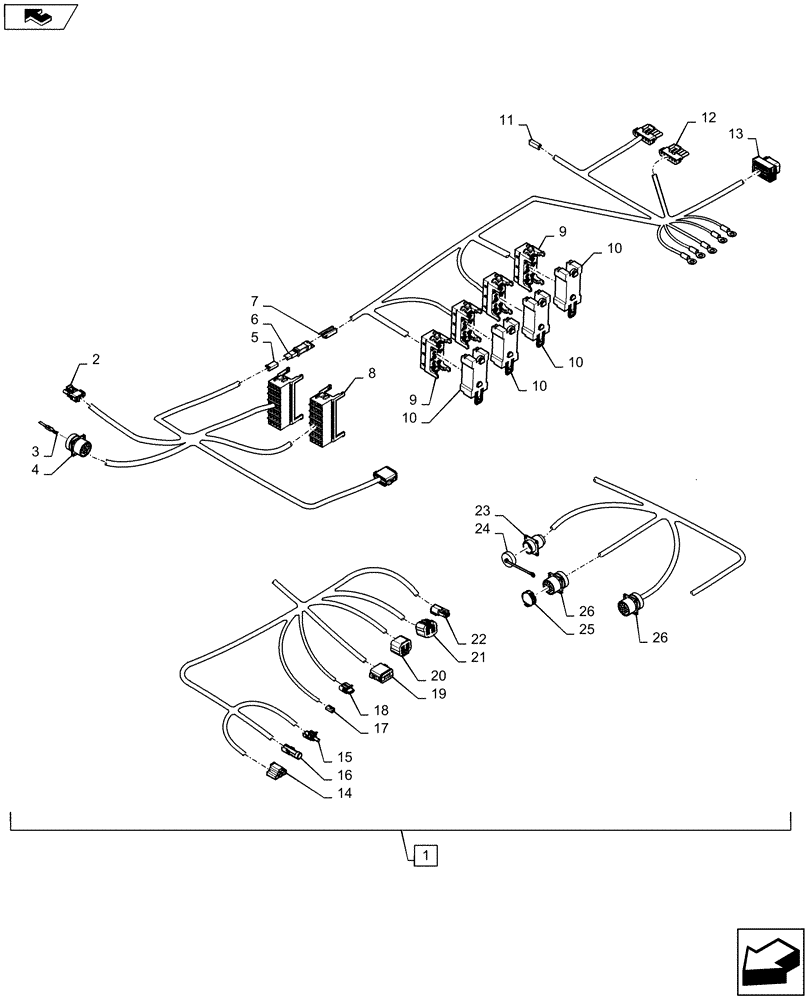

Запчасти Case IH MAGNUM 235 (55.510.AF[05]) - CAB HARNESS - ASN ZDRD02583 (55) - ELECTRICAL SYSTEMS

1

84564829

HARNESS

Cab; Incl 2 - 26

1шт.

2

245484C1

ELEC CONNECTOR,3 Pin

1шт.

3

225292C1

DUST CAP

1шт.

4

310057A1

ELEC CONNECTOR,Male, 9 Pin

1090M To Can SCR Diagnostics

1шт.

5

631801C1

CONNECTION

1шт.

6

113699A1

RECTIFIER

1шт.

7

739070C1

CONNECTOR, ELEC

1шт.

8

144421A1

CONNECTING BLOCK

262F

1шт.

8

144421A1

CONNECTING BLOCK

261F

1шт.

9

87705041

MULTIPOLE CONNECTOR,Female, 30 Pole

Module, Relay 6 way; 263F, 264F, 265F, 255F To Seat Power

4шт.

10

182163A1

ELECTRO/HYD CONTACT

263F, 264F, 265F, 255F To Seat Power

4шт.

11

87679485

ELEC CONNECTOR

600F To Emergency Brake Switch

1шт.

12

245488C1

ELEC CONNECTOR,6 Pin

379M To Diode Pack 2

1шт.

12

245488C1

ELEC CONNECTOR,6 Pin

207M To Diode Pack 1

1шт.

13

87680366

ELEC CONNECTOR,Female, 24 Cavities

135M Electronic Flasher

1шт.

14

475083C1

CONNECTOR, ELEC

12F To Rotary Worklight Switch

1шт.

15

245480C1

ELEC CONNECTOR,1 Pin

110M Connects to 110F

1шт.

16

245481C1

CONNECTION,ELECTRIC

110F Connects to 110M

1шт.

17

227429A1

CONNECTOR, ELEC

50M To Clutch Switch

1шт.

18

198550A1

CONNECTOR, ELEC

52M To Master Clutch Pedal Pod

1шт.

19

225389C1

CONNECTOR, ELEC

9M To Turn Signal Switch

1шт.

20

87700332

ELEC CONNECTOR

51M To FNRP

1шт.

21

87700107

ELEC CONNECTOR

54M To FNRP

1шт.

22

87696547

ELEC CONNECTOR,Female, 2 Cavities

1122F To Autoguidance Sensor

1шт.

23

225164C1

ELEC CONNECTOR

269F To Aux Power Connector

1шт.

24

225162C1

PLUG

Cap for 269F

1шт.

25

225292C1

DUST CAP

For 443M

1шт.

26

310057A1

ELEC CONNECTOR,Male, 9 Pin

443M To Can Second Diagnostics

1шт.

26

310057A1

ELEC CONNECTOR,Male, 9 Pin

74M Can Tractor Diagnostics

1шт.
