Запчасти Case IH MAGNUM 235 (55.100.DP[05]) - HARNESS, FRONT PTO (55) - ELECTRICAL SYSTEMS

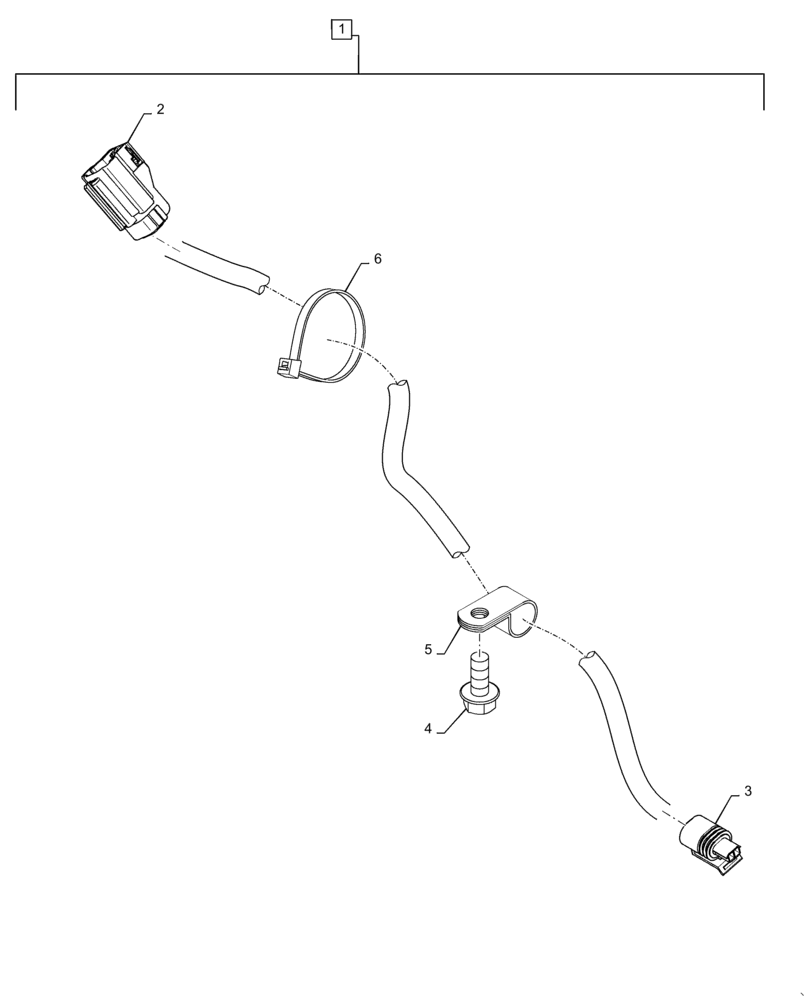

Схема запчастей Case IH MAGNUM 235 - (55.100.DP[05]) - HARNESS, FRONT PTO (55) - ELECTRICAL SYSTEMS
3
4
2
6
5
1

Артикул

Название

Примечание

Количество

1

84395692

HARNESS

Front PTO, Incl 2 - 3

1шт.

2

87382906

WIRE CONNECTOR,Female, 2 Cavities

495F, To Engine Harness

1шт.

3

84607243

ELEC CONNECTOR,Female, 2 Cavities

242F, To Sensor

1шт.

4

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

5

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

7-8" Black

1шт.

Выбрано товаров: 6
