Запчасти Case IH MAGNUM 235 (55.050.AL[01]) - WIRE HARNESS, AIR CONDITIONING WITH ATC (55) - ELECTRICAL SYSTEMS

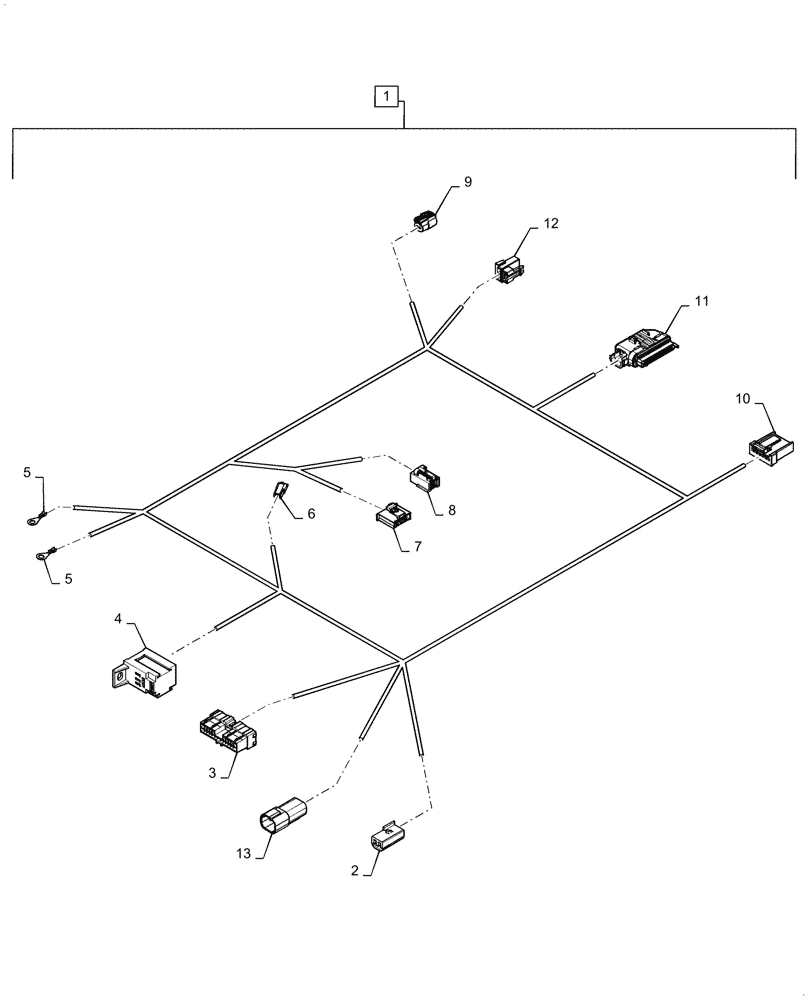

Схема запчастей Case IH MAGNUM 235 - (55.050.AL[01]) - WIRE HARNESS, AIR CONDITIONING WITH ATC (55) - ELECTRICAL SYSTEMS
11
3
2
6
5
9
4
12
1
5
10
13
7
8

Артикул

Название

Примечание

Количество

1

87323958

HARNESS

ATC HVAC Unit, Incl 2 - 13

1шт.

2

87697541

ELEC CONNECTOR

Air Sensor

1шт.

2

87705061

RETAINER

Gray Secondary Lock, 2-way

1шт.

3

196155A1

CONNECTOR, ELEC

Main Connector

1шт.

3

87704911

RETAINER

Blue Secondary Lock, 5-way

1шт.

3

87704912

RETAINER

Blue Secondary Lock, 13-way

1шт.

4

84375385

ELEC CONNECTOR

Clutch Relay

1шт.

5

NSS

NOT SOLD SEPARAT

TERMINAL RING 6.35mm (0.25") ID, Ground, Incl in 1

2шт.

6

87693717

ELEC CONNECTOR

Coil Probe

1шт.

7

84276172

ELEC CONNECTOR

SBC1

1шт.

8

NSS

NOT SOLD SEPARAT

ELEC CONNECTOR, SBC2, Incl in 1

1шт.

9

87693320

ELEC CONNECTOR

Low Pressure Switch

1шт.

10

87697787

ELEC CONNECTOR

Water Valve

1шт.

11

87693055

ELEC CONNECTOR

36-way, ATC Control Module

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER, Incl in 1

1шт.

11

87693315

RUBBER SEAL

Green Multiple Cable Seal, 36-way

1шт.

11

87693316

RETAINER

Gray Micro-Pack Strain Relief Lock

1шт.

11

87271911

PLUG

Blue Cable Cavity Plug

12шт.

12

NSS

NOT SOLD SEPARAT

CONNECTOR, Blower Motor, Incl in 1

1шт.

13

87694154

CONTACT HOUSING,Male, 4 Pole

Defog Switch / Can Bus

1шт.

13

87694145

ELEC CONNECTOR

Wedge Lock, 4-way

1шт.

Выбрано товаров: 21
