Запчасти Case IH MAGNUM 235 (41.432.AC[03]) - STEERING PRIORITY - CVT (41) - STEERING

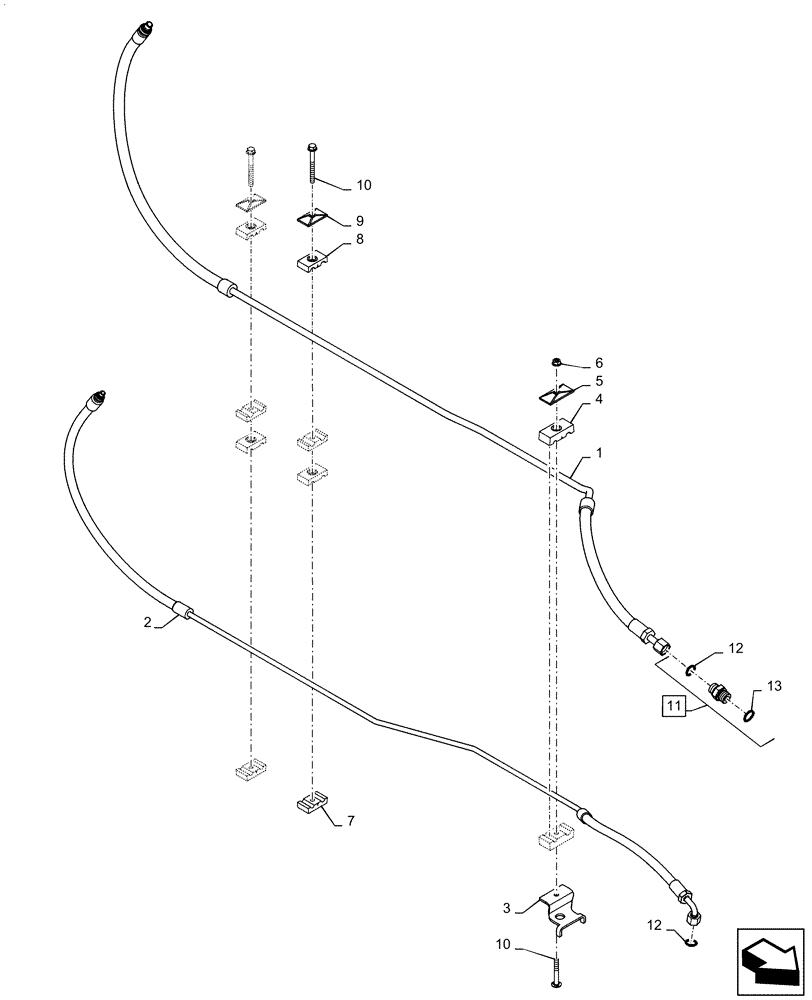

Схема запчастей Case IH MAGNUM 235 - (41.432.AC[03]) - STEERING PRIORITY - CVT (41) - STEERING
8
6
13
12
11
3
1
9
2
10
5
4
7
10
12

Артикул

Название

Примечание

Количество

1

84488842

HYD TUBE

Steering Supply, Std Rear Axle

1шт.

1

47506468

HYD TUBE

Steering Supply, HD Rear Axle

1шт.

2

47469638

HYD TUBE

Steering Load Sense, Std Rear Axle

1шт.

2

47469634

HYD TUBE

Steering Load Sense, HD Rear Axle

1шт.

3

84397944

BRACKET

Tube Clamp Mounting

1шт.

4

87105732

CLAMP

2 Hole 12.7-9.52 mm Dia Ribbed

1шт.

5

1347127C1

PLATE

Tube Clamp

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

7

87000148

CLAMP

2 Hole 9.52-9.52 mm Dia Ribbed

2шт.

8

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

2 Hole 12.7-12.7 mm Dia Ribbed

2шт.

9

384870A1

PLATE

Hose Clamp Cover

2шт.

10

844-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

2шт.

11

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 12 - 13

1шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 15
