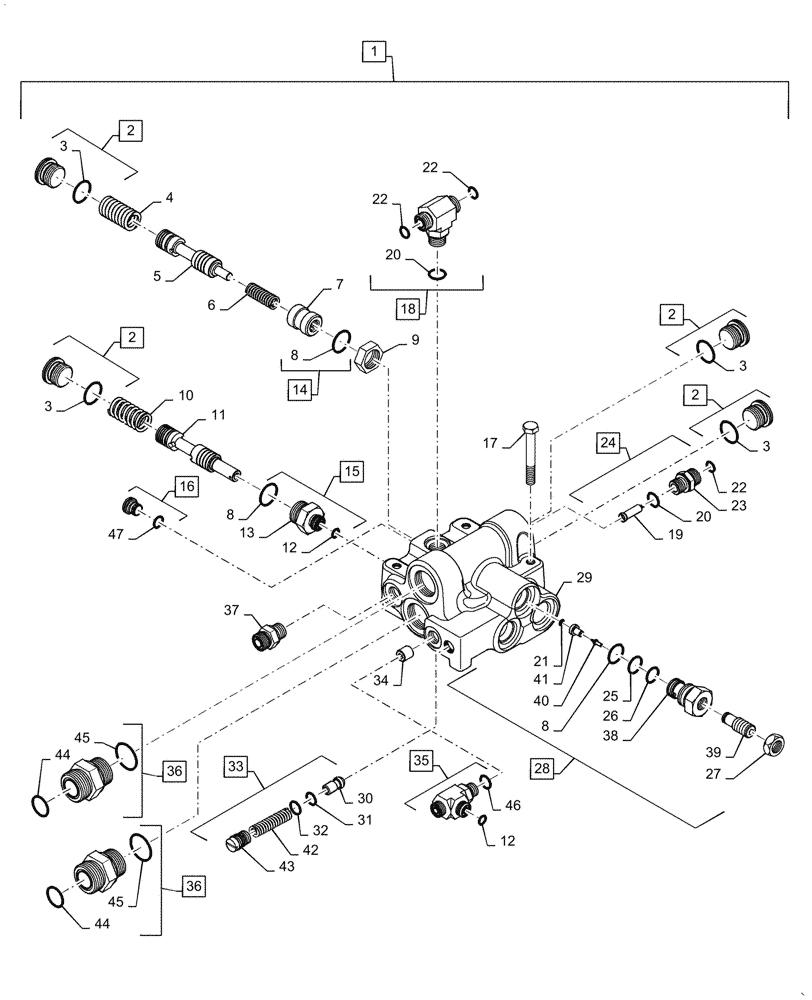

Запчасти Case IH MAGNUM 235 (41.200.AY[01]) - PRIORITY & REGULATOR VALVE ASSEMBLY - MAGNUM 235, 260, AND 290 (41) - STEERING

1

84498432

HYDRAULIC VALVE

Assy, Priority/Regulator; Incl 2 - 16, 25 - 34, 38 - 43

1шт.

2

221580A1

PLUG,M27 x 2 ORB

Incl 3

4шт.

3

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

4

84498444

SPRING

Regulator Outer

1шт.

5

84498440

SPOOL

Regulator

1шт.

6

84498441

SPRING

Regulator Inner

1шт.

7

84498439

HYDRAULIC VALVE

Adjusting

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

9

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

10

408447A1

COMPRESSION SPRING

MU8 Steering

1шт.

11

87448952

SPOOL

Steering Priority

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

13

176087A1

FITTING

1шт.

14

84498437

STOP PLUG,1-1/16" - 12

Incl 7, 8

1шт.

15

313940A1

FITTING

Incl 8, 12, 13

1шт.

16

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 47

1шт.

17

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

3шт.

18

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 20, 22

1шт.

19

326965A1

FILTER STRAINER,10.46mm OD x 33.7mm L, 140 Micron

1шт.

20

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

21

196096A1

SCREEN

1шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

23

315919A1

FITTING

Strainer Seat

1шт.

24

316443A2

FITTING

Strainer Assy; Incl 19, 20, 22, 23

1шт.

25

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

Back-up

1шт.

26

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

27

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

28

130060A2

PILOT VALVE

Pilot Relief, 19000 kPa; Incl 8, 21, 25 - 27, 38 - 42

1шт.

29

84420909

VALVE BODY

1шт.

30

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

31

165212

O-RING,0.551" ID x 0.691" OD x 0.07"

1шт.

32

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

Back-up

1шт.

33

1542563C1

KIT

Valve Assy, Logic Check; Incl 30 - 32, 42 - 43

1шт.

34

87427769

PLUG

Orifice

1шт.

35

700-441

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 12, 46

1шт.

36

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 44, 45

2шт.

37

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 20, 22

1шт.

38

G108866

HOUSING,1-1/16" - 12

Pilot Relief

1шт.

39

G108867

PLUG

Adj. Pilot Relief

1шт.

40

G108556

VALVE POPPET

1шт.

41

196095A1

SEAT

1шт.

42

1994581C1

SPRING,6.1mm OD x 31.1mm L

Logic Check Valve

1шт.

43

1994580C1

PLUG

Logic Check Valve

1шт.

44

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

45

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

46

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

47

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
