(41.106.AD[03]) - VAR - 420224, 420228 TIE-ROD, CLASS 4.75, NON-SUSPENDED - ZDR*04535 AND AFTER, SUSPENDED - ZDR*05034 AND AFTER

Запчасти Case IH MAGNUM 235 (41.106.AD[03]) - VAR - 420224, 420228 TIE-ROD, CLASS 4.75, NON-SUSPENDED - ZDR*04535 AND AFTER, SUSPENDED - ZDR*05034 AND AFTER (41) - STEERING

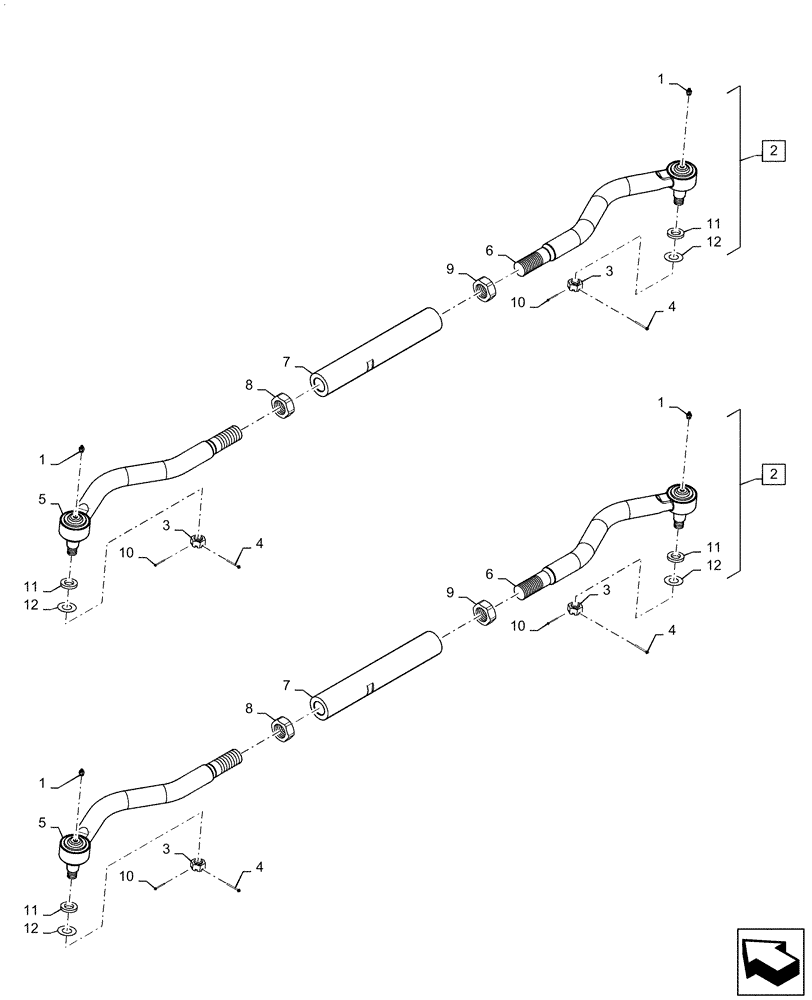

Схема запчастей Case IH MAGNUM 235 - (41.106.AD[03]) - VAR - 420224, 420228 TIE-ROD, CLASS 4.75, NON-SUSPENDED - ZDR*04535 AND AFTER, SUSPENDED - ZDR*05034 AND AFTER (41) - STEERING
5
9
1
5
1
3
4
4
10
4
12
12
7
6
8
2
8
4
10
11
12
11
11
6
1
1
3
3
11
7
10
10
2
3
9
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13407211

LUBE NIPPLE,M10 x 1

4шт.

2

84297786

TIE-ROD

Assy, Incl 3, 5 - 12

2шт.

3

84588426

NUT,M22 x 1.5

Hex Slotted M22 x 1.5

4шт.

4

432-828

COTTER PIN,1/8" x 1 3/4"

4шт.

5

47461986

TIE-ROD,M42 x 1.5, LH, Cl 4.75

Assy, Left, CL4.75

2шт.

6

47461985

TIE-ROD,M42 x 1.5, RH, Cl 4.75

Assy, Right, CL 4.75

2шт.

7

47461984

TIE-ROD

Center, CL 4.75

2шт.

8

47461988

JAM NUT,M42 x 1.5

Right

2шт.

9

47461987

JAM NUT,M42 x 1.5

Left

2шт.

10

80708

COTTER PIN,1/8" x 1 1/2"

4шт.

11

47577020

COVER

Cardan Short, CL 5

2шт.

12

47577021

WASHER

Steering Cyl Rod Side

2шт.
