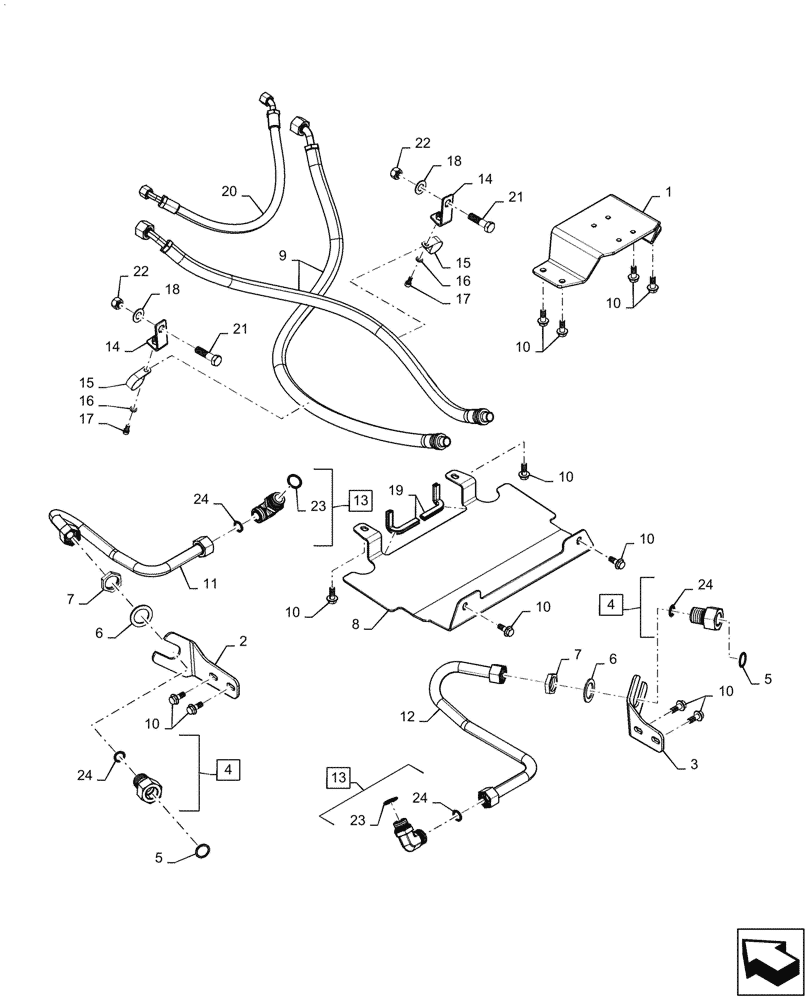

Запчасти Case IH MAGNUM 235 (25.122.AA[02]) - ACCUMULATOR, BRACKET, HYDRAULIC HOSE - 235, SCISSORS SUSPENSION ONLY (25) - FRONT AXLE SYSTEM

1

84252238

BRACKET

Suspended Axle Blocking Valve Support

1шт.

2

47809023

MOUNTING PLATE

LH Accumulator Mounting Plate

1шт.

3

84256624

PLATE

RH Accumulator Mounting Plate

1шт.

4

84282891

ADAPTER

Accumulator, Incl 24

2шт.

5

84160815

SEALING RING

2шт.

6

86632584

WASHER,1.53" ID x 2.25" OD x 0.12" Thk

2шт.

7

701-908

BHD LOCK NUT,1-7/16" - 12

2шт.

8

84484221

PLATE

Suspended Axle Accumlator Mounting

1шт.

9

84282601

HYDRAULIC HOSE

Accumulator

2шт.

10

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

12шт.

11

47809024

HYD TUBE

LH Axle Valve to Accumulator

1шт.

12

84256622

TUBE

RH Axle Valve to Accumulator

1шт.

13

84283493

FITTING

Incl 23, 24

2шт.

14

84259076

BRACKET

Hose Clamp

2шт.

15

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

17

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

18

84151586

WASHER,18.5mm ID x 35mm OD x 2mm Thk

2шт.

19

84388204

TRIM

2шт.

20

84534041

HOSE,12.7mm ID x 700mm L, SAE 100R17

1шт.

21

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

Hose Abrasion

2шт.

22

829-1416

NUT,M16, Cl 10

2шт.

23

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

24

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.
