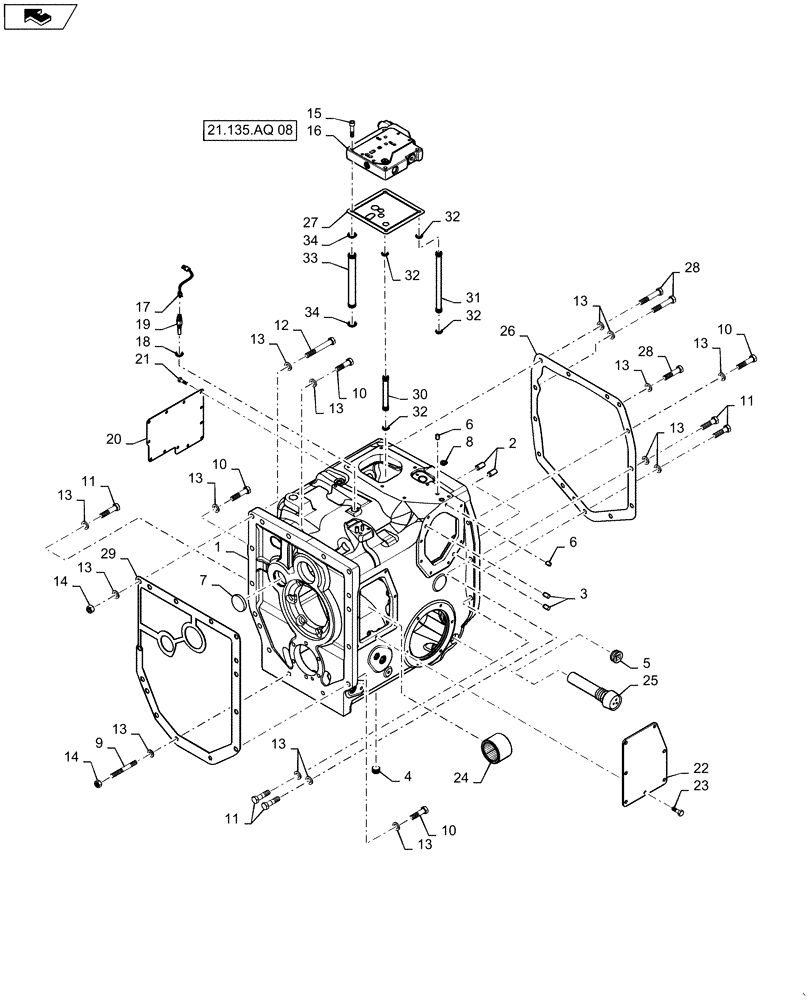

Запчасти Case IH MAGNUM 235 (21.113.AB[01]) - POWERSHIFT - RANGE TRANSMISSION HOUSING (21) - TRANSMISSION

1

84375532

HOUSING

Range Transmission, Incl 2 - 8, Serial Range: -AJB0500000

1шт.

1

47545618

TRANSMISSION HOUSING

Incl 2 - 8, Start Serial: AJB0500000

1шт.

2

837-16035

DOWEL,M16 x 35

4шт.

3

837-12025

DOWEL,M12 x 25

2шт.

4

86598046

PLUG,M18 x 1.5 ORB

1шт.

5

327080A1

PLUG,Hdls Sq Skt Pipe,1 1/4" NPTF, W/ Sealant

1-1/4 NPTF

1шт.

6

87520605

EXPANSION PLUG,12mm

Expansion, 12mm

2шт.

7

41-1038

PLUG,Cup, 2 3/8"

1шт.

8

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

9

47631215

STUD,M16 x 2 x 115mm, Cl 10.9

M16 x 2.0 X 115 10.9, GEOMET 321 L

2шт.

10

47631211

12 PT SCREW,M16 x 2 x 60mm, Cl 12.9

12PT, M16 x 60 12.9, GEOMET 321 L

4шт.

11

47631212

12 PT SCREW,M16 x 2 x 70mm, Cl 12.9

12PT, M16 x 70 12.9, GEOMET 321 L

13шт.

12

47631214

12 PT SCREW,M16 x 2 x 120mm, Cl 12.9

12PT, M16 x 120 12.9, GEOMET 321 L

7шт.

13

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

16шт.

14

829-1316

NUT,M16, Cl 10

3шт.

15

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

16

445537A2

VALVE

Inching, Shuttle

1шт.

17

87631267

WIRE HARNESS

Speed sensor

1шт.

18

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

19

87548198

SENSOR

Transmission Ground Speed

1шт.

20

84384819

COVER

Range Housing

1шт.

21

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

12шт.

22

225209A1

COVER

Park Brake

1шт.

23

87015732

BOLT,M10 x 1.5 x 26.58mm, Cl 10.9

7шт.

24

301533R1

NEEDLE BEARING,Needle, 44.44mm ID x 53.96mm OD x 38.1mm W

1шт.

25

536850R1

HEATER

120 Volt

1шт.

26

87390949

GASKET,0.79mm Thk

No Longer Furnished, Use Loctite 515

1шт.

27

253385A2

GASKET,0.92mm Thk

Inching Valve/Range Mounting Plate

1шт.

28

47631213

12 PT SCREW,M16 x 2 x 90mm, Cl 12.9

12PT, M16 x 90 12.9, GEOMET 321 L

5шт.

29

92821C2

GASKET,0.79mm Thk

No Longer Furnished, Use Loctite 515

1шт.

30

235976A2

TUBE,8 mm ID, 13 mm OD

1шт.

31

256544A1

TUBE,8 mm ID, 15.35 mm OD, 199 mm Length

Jumper

3шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

33

300828A1

TUBE,22.85 mm OD, 199 mm Length

Range Input Cage Jumper

1шт.

34

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

2шт.
