Запчасти Case IH MAGNUM 235 (21.105.AI[04]) - POWERSHIFT - TRANSMISSION LUBRICATION LINES - HD - 315, 340 (21) - TRANSMISSION

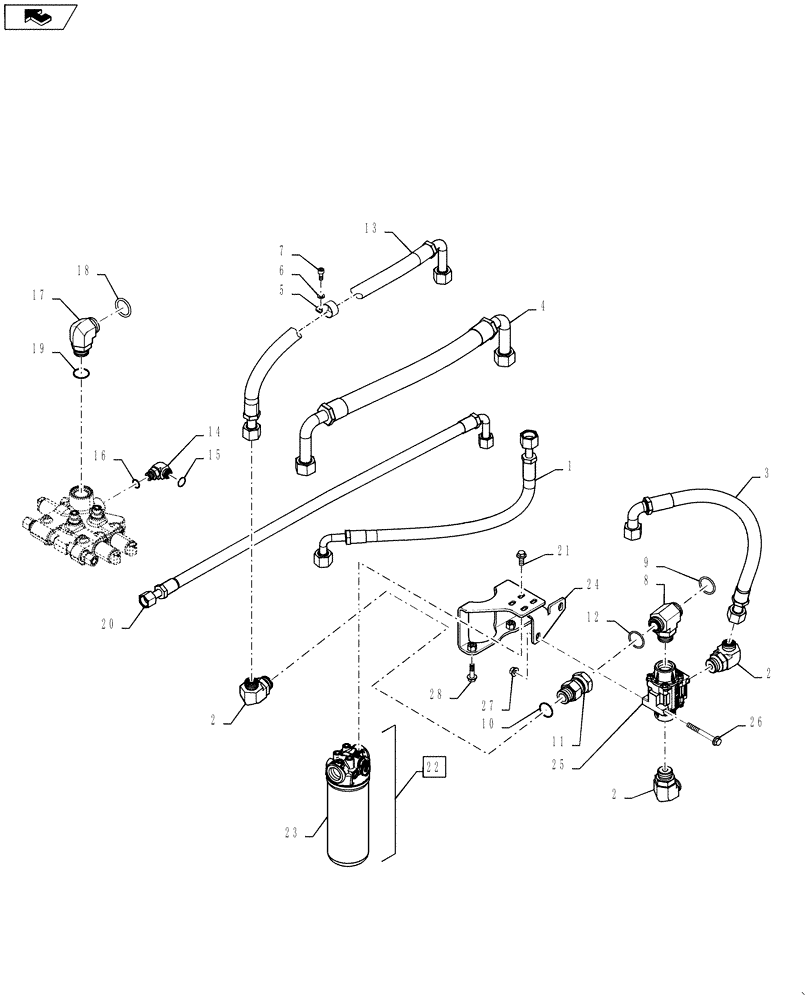

![Схема запчастей Case IH MAGNUM 235 - (21.105.AI[04]) - POWERSHIFT - TRANSMISSION LUBRICATION LINES - HD - 315, 340 (21) - TRANSMISSION](https://partsell.ru/storage/images/caseih/231679.png)
№
Артикул
Название
Примечание
Количество
1
84355281
HOSE,15.88mm ID x 700mm L, SAE 100R1
Lube, Relief
1шт.
2
86579698
90 ELBOW,1 3/16"-12 ORFS x M33 x 2 ORB
ADJ - 12 ORFS x M33 x 2 ORB
3шт.
3
84469753
HOSE
Charge Pump to Bypass Valve
1шт.
4
84354805
HOSE,25.4mm ID x 680mm L, SAE 100R16
Pump to Filter Inlet
1шт.
5
515-23317
CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type
1шт.
6
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
1шт.
7
864-8020
HEX SOC SCREW,M8 x 20mm, Cl 8.8
1шт.
8
700-404
TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
1шт.
9
86598104
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
2шт.
11
84340192
HYD CONNECTOR
M33 x 2 ORB 1 - 7/16 - 12 SWV
1шт.
13
84331762
HOSE,19.05mm ID x 800mm L, SAE 100R16
Filter to Filter
1шт.
14
700-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
1шт.
15
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
16
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
17
700-308
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
1шт.
18
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
19
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
20
84544496
HOSE,15.88mm ID x 970mm L, SAE 100R1
1шт.
21
844-10025
BOLT,Hex, M10 x 25mm, Cl 8.8
4шт.
22
84356071
FILTER ASSY
Incl 23, 29
1шт.
24
84389204
BRACKET
Filter and Valve MTG
1шт.
25
84577551
VALVE
Thermostatic Cooler Bypass
1шт.
25
47976594
SERVICE KIT
Thermostatic Cooler Bypass Valve
1шт.
26
844-10090
BOLT,Hvy Hex, M10 x 90mm, Cl 8.8
2шт.
27
829-2410
FLANGE NUT,M10 x 1.5, Flg, Cl 10
2шт.
28
844-10035
BOLT,Hex, M10 x 35mm, Cl 8.8
2шт.
29
47397725
PRESSURE SWITCH
Restriction Indicator, Not Illustrated
1шт.
Выбрано товаров: 30
