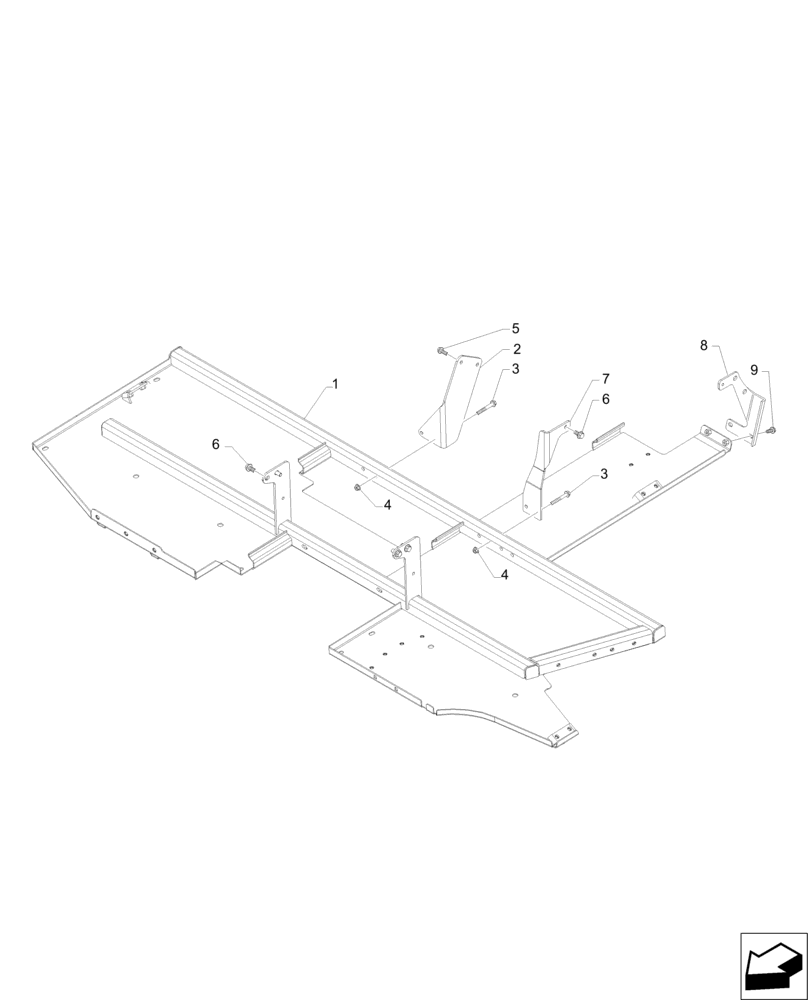

Запчасти Case IH MAGNUM 235 (10.216.AI[04]) - FUEL TANK SUPPORTS WITH POWERSHIFT TRANSMISSION (10) - ENGINE

1

84374832

SUPPORT

1шт.

2

84181555

BRACKET, SUPPORTING

1шт.

3

857-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

4шт.

4

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

5

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

6

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

5шт.

7

84181556

STRAP

1шт.

8

84425572

BRACKET

1шт.

9

857-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

2шт.
