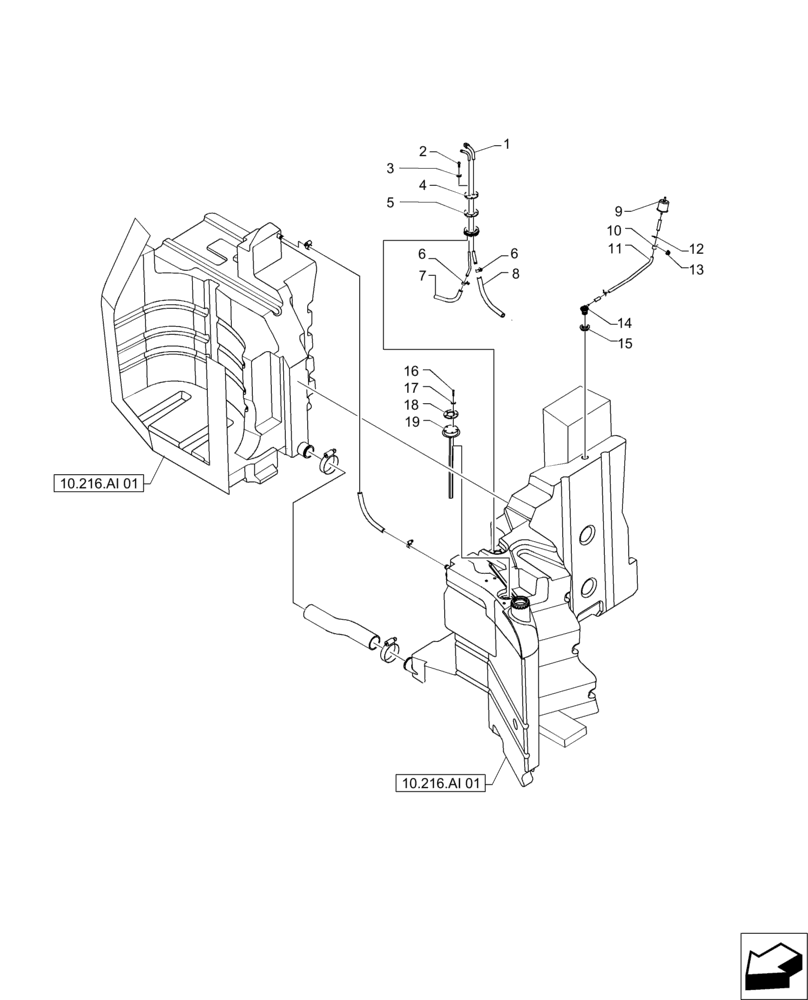

Запчасти Case IH MAGNUM 235 (10.216.AI[02]) - FUEL TANKS & MOUNTING, T2 WITH POWERSHIFT TRANSMISSION (10) - ENGINE

1

84194645

PIPE

1шт.

2

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

5шт.

3

86509828

LOCK WASHER,M5

10шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

87537695

GASKET

2шт.

6

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

7

84197990

FUEL HOSE

1шт.

8

84197988

FUEL HOSE

1шт.

9

87433010

BREATHER

1шт.

10

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

11

275801A1

FUEL HOSE

1шт.

12

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

13

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

14

275800A1

VALVE STEM

1шт.

15

255094A1

GROMMET

1шт.

16

440-11020

SCREW,Cross Pan Hd, #10-24 x 1 1/4"

5шт.

17

86509828

LOCK WASHER,M5

10шт.

18

87537695

GASKET

2шт.

19

84237523

SENSOR

1шт.

20

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

1шт.

21

128209A1

PLUG

3шт.
