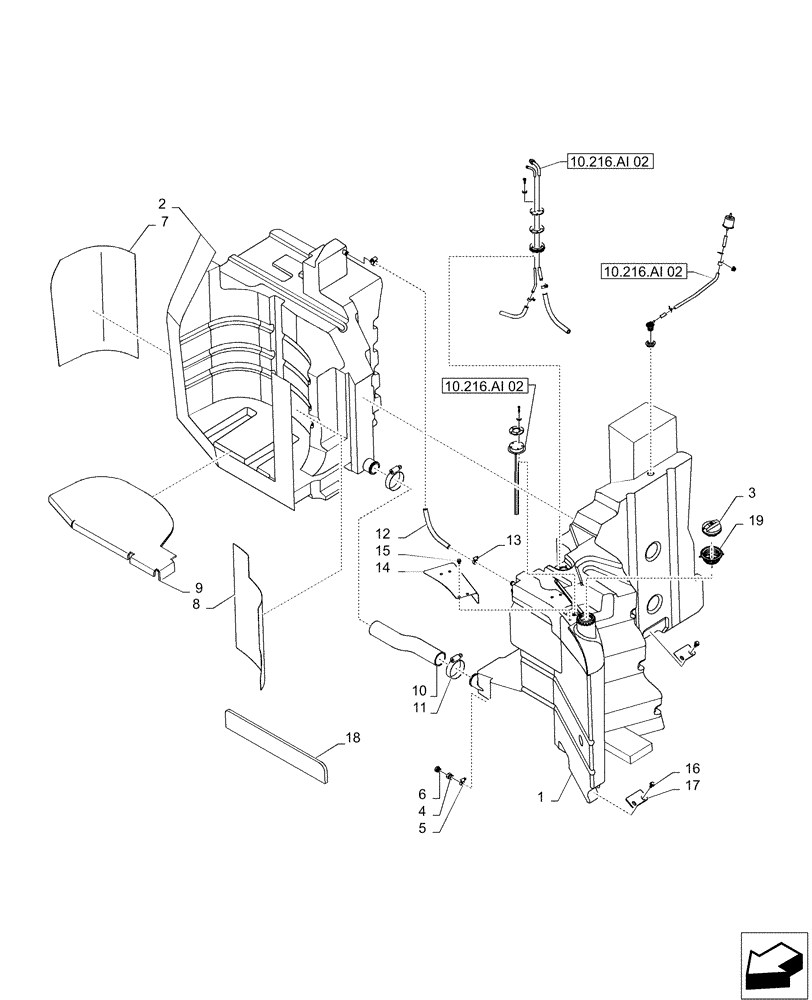

Запчасти Case IH MAGNUM 235 (10.216.AI[01]) - FUEL TANKS & MOUNTING, T2 WITH POWERSHIFT TRANSMISSION (10) - ENGINE

1

47777579

FUEL TANK

1шт.

2

47821488

FUEL TANK

1шт.

3

87731275

CAP

1шт.

4

87752134

REDUCER

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

7

84290919

HEAT SHIELD

, Serial Range: -HCCZM235HDCM18416

1шт.

8

84290920

HEAT SHIELD

, Serial Range: -HCCZM235HDCM18416

1шт.

9

84373212

SHIELD

1шт.

10

84271159

HOSE,63.5mm ID x 639mm L, SAE 30R6

1шт.

11

214-3248

HOSE CLAMP,57mm - 79mm

2шт.

12

84361003

FUEL HOSE

1шт.

13

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

14

84236956

MOUNTING PLATE

2шт.

15

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

16

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

10шт.

17

243779A4

LARGE PLATE

3шт.

18

84253788

BRACKET

1шт.

19

87731276

INSERT

1шт.
