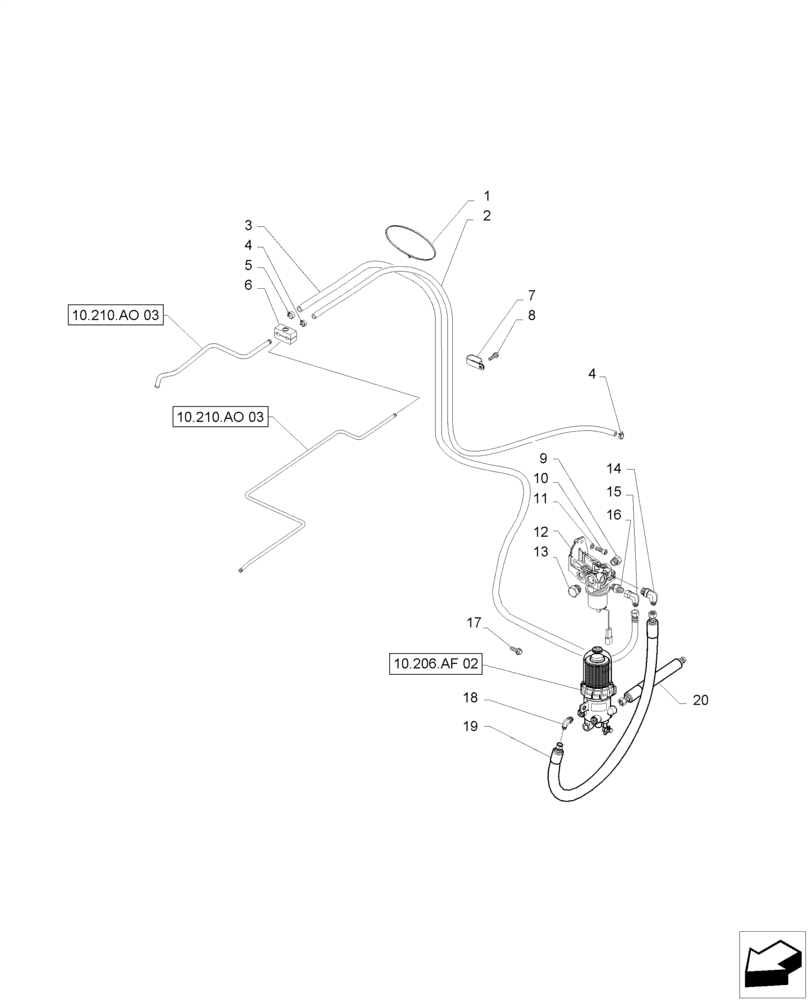

Запчасти Case IH MAGNUM 235 (10.210.AO[02]) - FUEL LINES & RELATED PARTS (10) - ENGINE

1

291207C1

CLAMP

1шт.

2

84341697

FUEL HOSE

1шт.

3

84278943

HOSE,12.7mm ID x 2420mm L, SAE 30R7

1шт.

4

1348264C1

HOSE CLAMP

12шт.

5

196252A1

CLAMP

2шт.

6

410573A1

CLAMP

1шт.

7

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

8

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

9

86512512

PLUG,7/8" - 14 ORB

1шт.

10

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

3шт.

11

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

12

87676818

FUEL PUMP,12V, 4.5A

1шт.

13

163410

PLUG,1-1/16" - 12 ORB

1шт.

14

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

16

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

17

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

18

87472298

90 ELBOW

1шт.

19

84419653

HOSE,12.7mm ID x 1130mm L, SAE 30R7

2шт.
