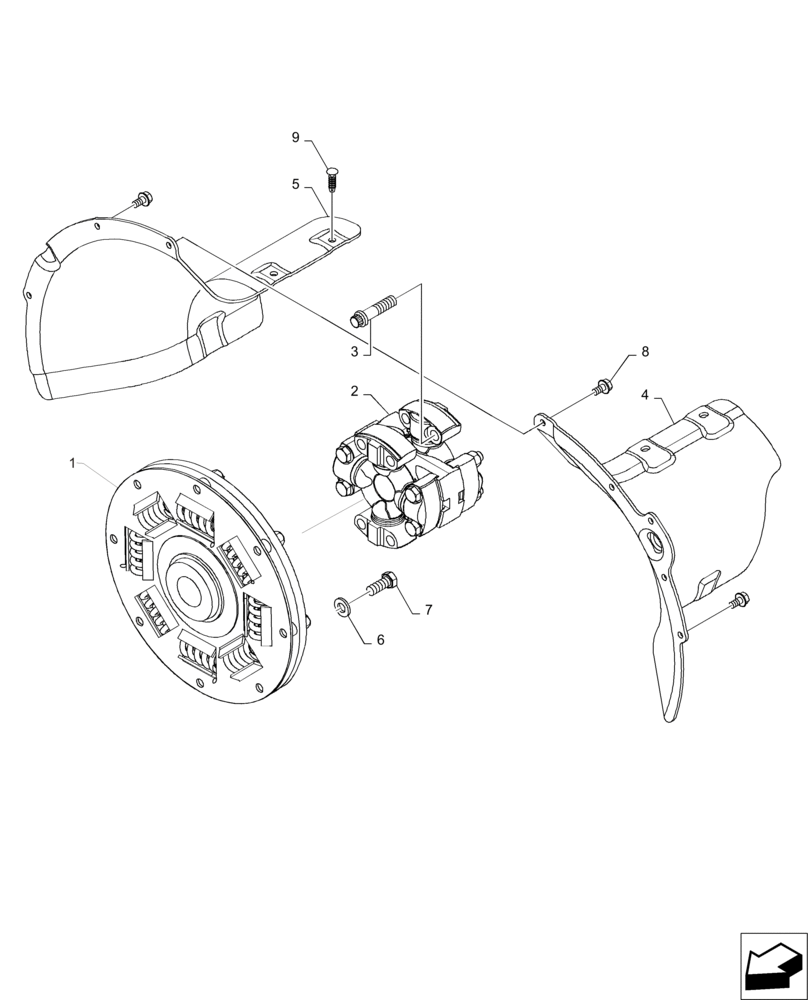

Запчасти Case IH MAGNUM 235 (10.110.AD) - DAMPER, PST SHAFT & SHIELD (10) - ENGINE

1

84146340

DAMPER

1шт.

1

84146340R

REMAN-DAMPER

Reman Damper

1шт.

1

84146340C

CORE-DAMPER

Core Return Number

1шт.

2

87678404

SHAFT

1шт.

3

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

4

84226324

SHIELD

1шт.

5

84226325

SHIELD

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

7

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

8

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

7шт.

9

87529297

CLIP

2шт.
