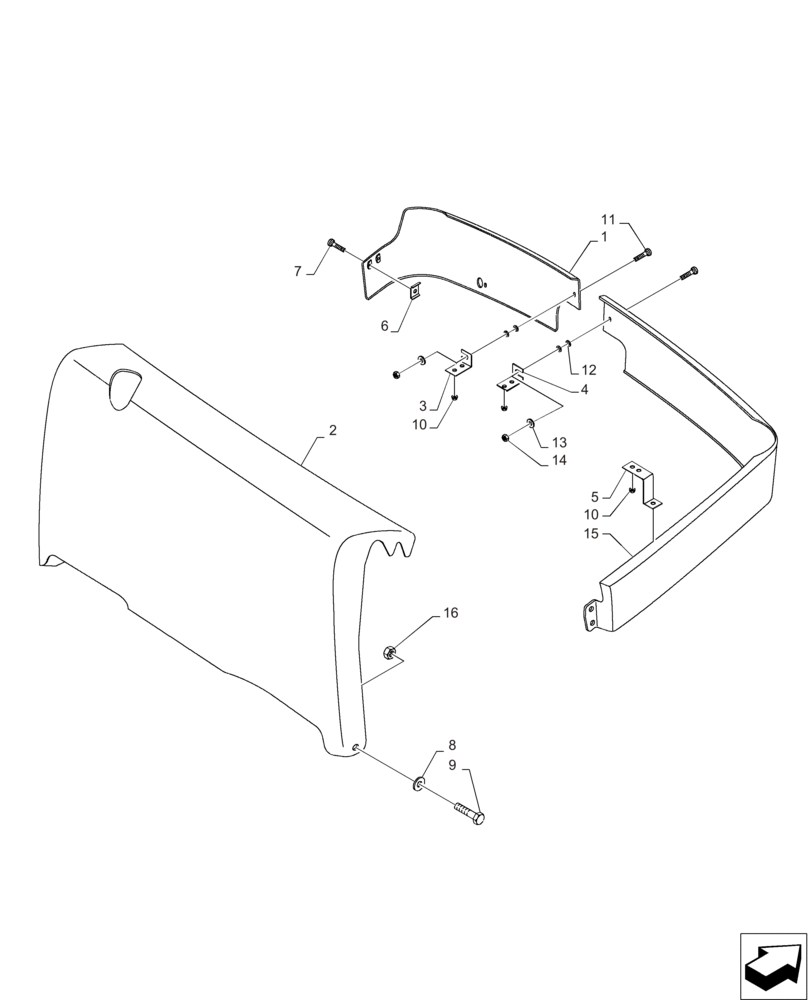

Запчасти Case IH MAGNUM 235 (90.160.AH) - CAB, EXTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84491546

PANEL

1шт.

2

47517653

PANEL

1шт.

3

87432399

BRACKET

1шт.

4

87432398

BRACKET

1шт.

5

84299087

BRACKET

1шт.

6

131-642

SPRING NUT,Tinn, U, #10

4шт.

7

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

6шт.

11

840-1820

SCREW,Pan, M8 x 20mm, Cl 4.8

2шт.

12

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

4шт.

13

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

15

84491549

PANEL

1шт.

16

825-5148

SERRATED NUT,M8, Flg Ser

2шт.
