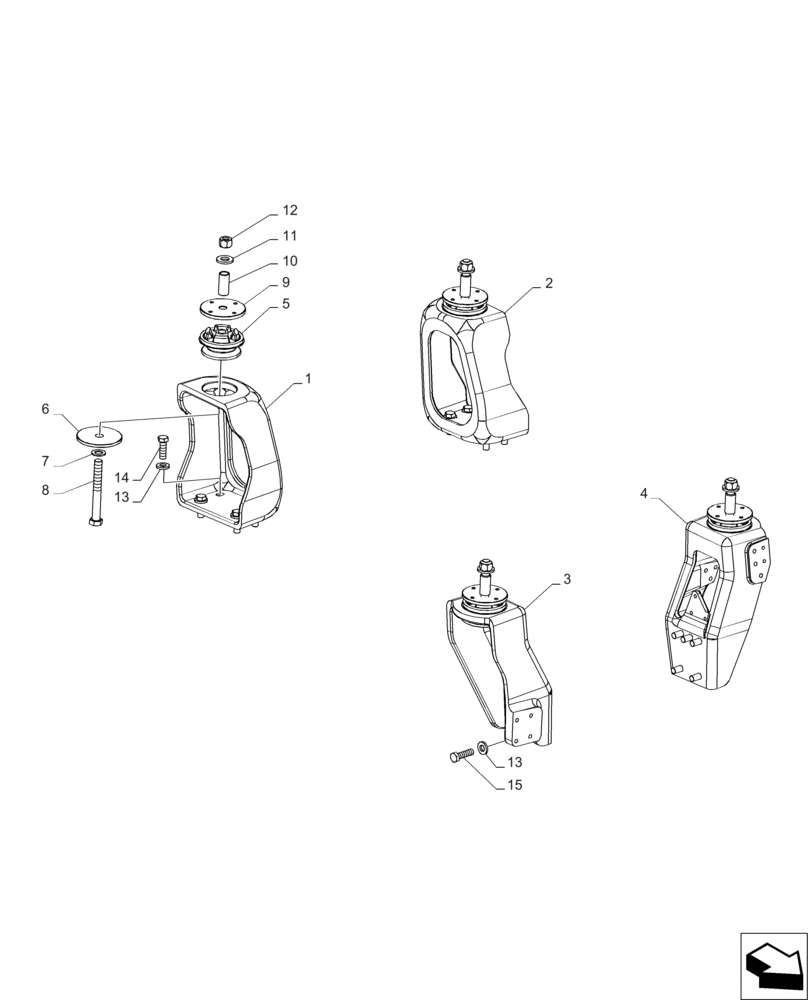

Запчасти Case IH MAGNUM 235 (90.150.AJ[02]) - CAB MOUNTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84291004

MOUNT

RH

1шт.

2

84291006

MOUNT

LH

1шт.

3

84350239

MOUNT

RH

1шт.

4

84272494

MOUNT

LH

1шт.

5

83983548

ISOLATOR,120mm OD x 64mm L

4шт.

6

87476928

SPACER,21mm ID x 120mm OD x 9.2mm L

4шт.

7

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

8

87493301

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

4шт.

9

87479138

SPACER

4шт.

10

87476869

TUBE

2шт.

11

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

12

86015195

NUT,M20 x 1.5, Cl 10

4шт.

13

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

18шт.

14

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

15

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

10шт.
