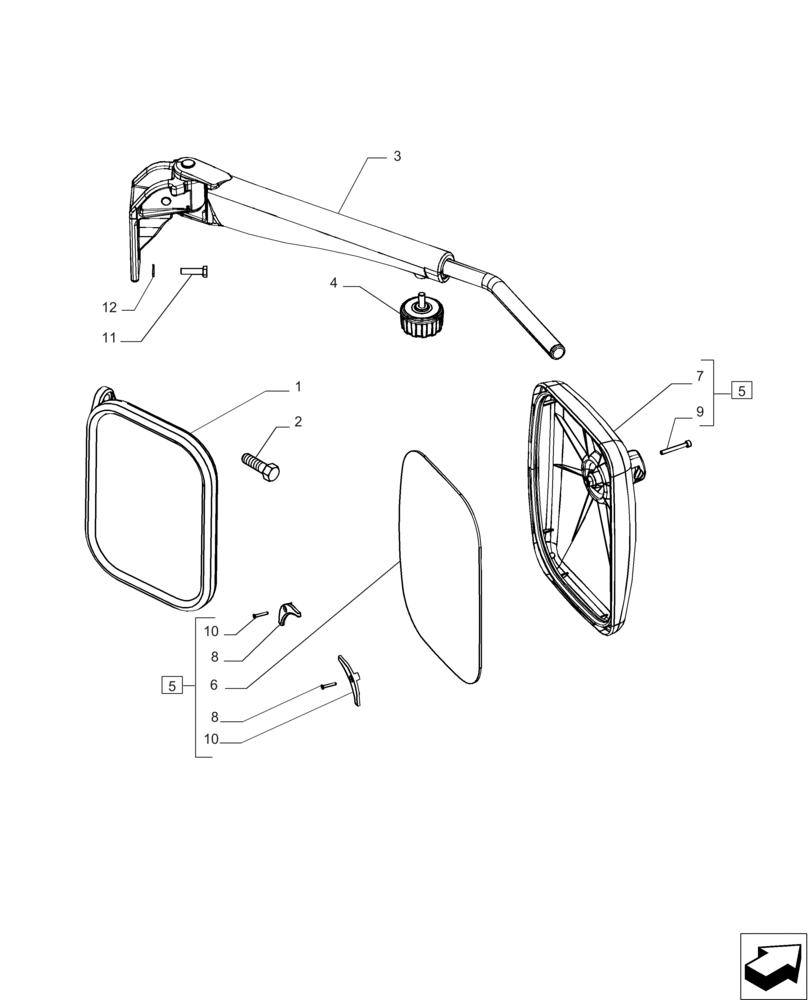

Запчасти Case IH MAGNUM 235 (90.118.BM) - MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82036480

MIRROR

Assy

1шт.

2

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

2шт.

3

84255096

MIRROR ARM

RH

1шт.

3

87350489

MIRROR ARM

LH

1шт.

4

87365131

KNOB

1шт.

5

87350494

MIRROR ASSY.,240mm x 329mm

Incl 6 - 12

2шт.

6

324437A1

REPLACEMENT MIRROR

1шт.

7

82035218

MIRROR,300mm x 200mm

1шт.

8

87531094

BRACKET

4шт.

9

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

10

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

2шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

6шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.
