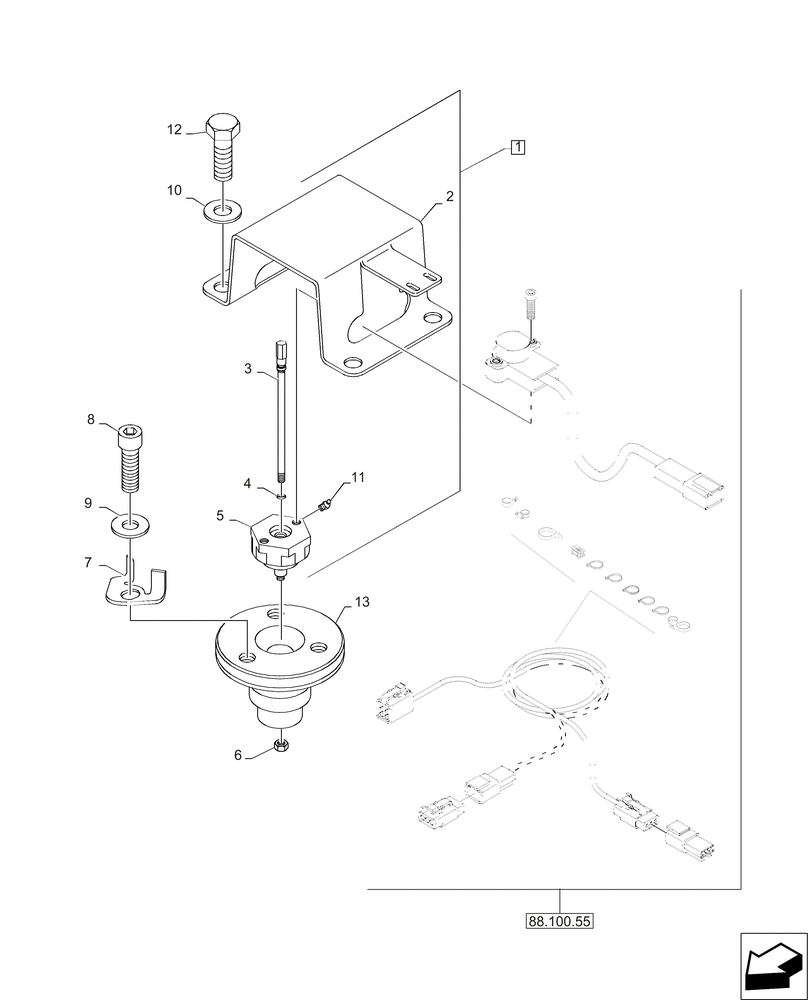

Запчасти Case IH MAGNUM 235 (88.100.44) - AUTOGUIDANCE MFD (88) - ACCESSORIES

1

87311993

KIT

Incl 2 - 5, 11

1шт.

2

87308126

COVER

1шт.

3

87307820

SHAFT

1шт.

4

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1шт.

5

87307822

MOUNTING PARTS,M5 x 0.8

1шт.

6

832-10406

NUT,M6 x 1, Cl 8

1шт.

7

87307821

LOCK WASHER

1шт.

8

863-14045

HEX SOC SCREW,M14 x 45mm, Cl 12.9

1шт.

9

87307821

LOCK WASHER

1шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

12

614-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

4шт.

13

378410A1

CAP

1шт.
