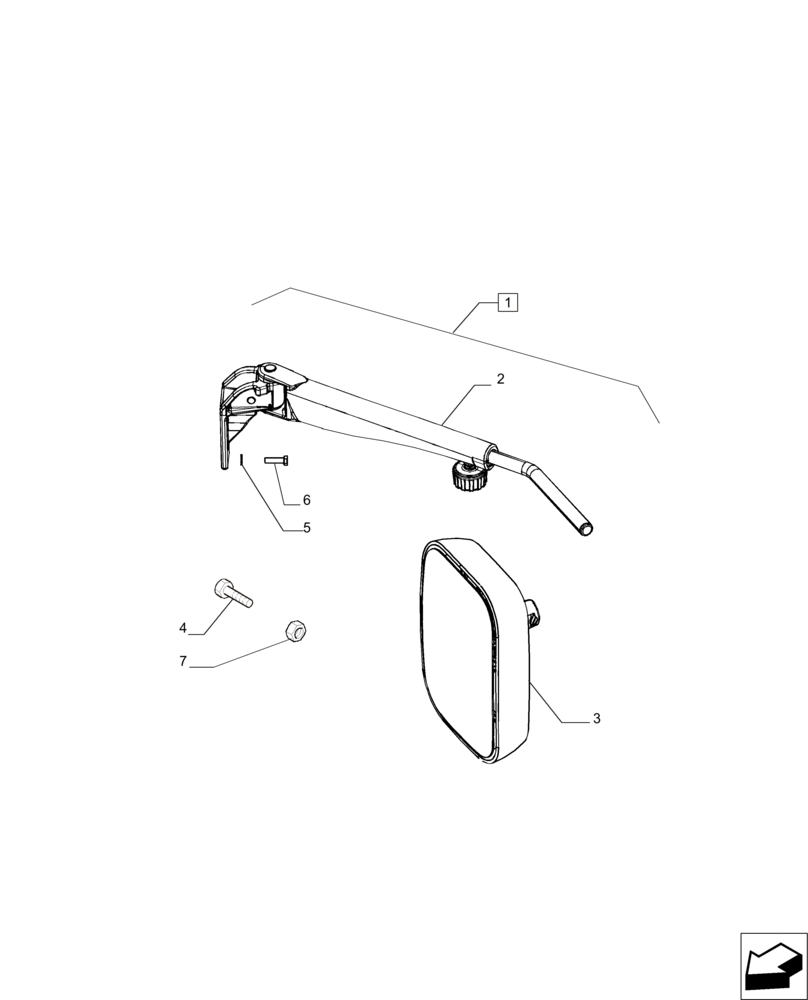

Запчасти Case IH MAGNUM 235 (88.090.07) - DIA KIT, MANUAL WIDE ADJUSTABLE MIRRORS (88) - ACCESSORIES

1

84327991

DIA KIT, TRACTOR

Incl 2 - 7

1шт.

2

84255096

MIRROR ARM

RH, Manual

1шт.

2

87350489

MIRROR ARM

LH, Manual

1шт.

3

87350494

MIRROR ASSY.,240mm x 329mm

2шт.

4

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

6

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.
