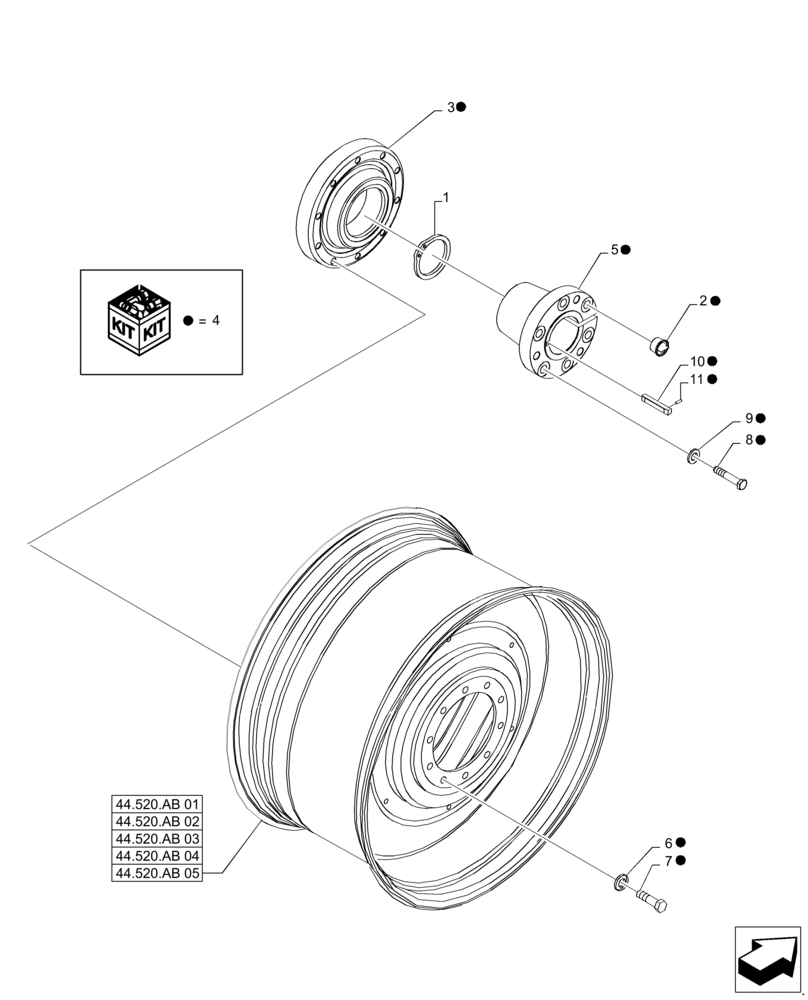

Запчасти Case IH MAGNUM 235 (88.044.01[01]) - HUB ASSEMBLY, REAR WHEEL (88) - ACCESSORIES

1

800-51100

SNAP RING,M100, Ext, Hvy

2шт.

1

800-11115

SNAP RING,M115, Ext

2шт.

2

303401A1

PLUG

6шт.

3

405812A1

HUB

2шт.

4

719677006

DIA KIT, TRACTOR

Incl 2, 3, 5 - 11

1шт.

5

405816A1

BUSHING

4шт.

6

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

7

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

20шт.

8

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

12шт.

9

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

10

A63219

KEY

2шт.

11

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.
