(88.037.06) - DIA KIT, REAR WHEEL WEIGHTS, I PAIR 500LB/227KG

Запчасти Case IH MAGNUM 235 (88.037.06) - DIA KIT, REAR WHEEL WEIGHTS, I PAIR 500LB/227KG (88) - ACCESSORIES

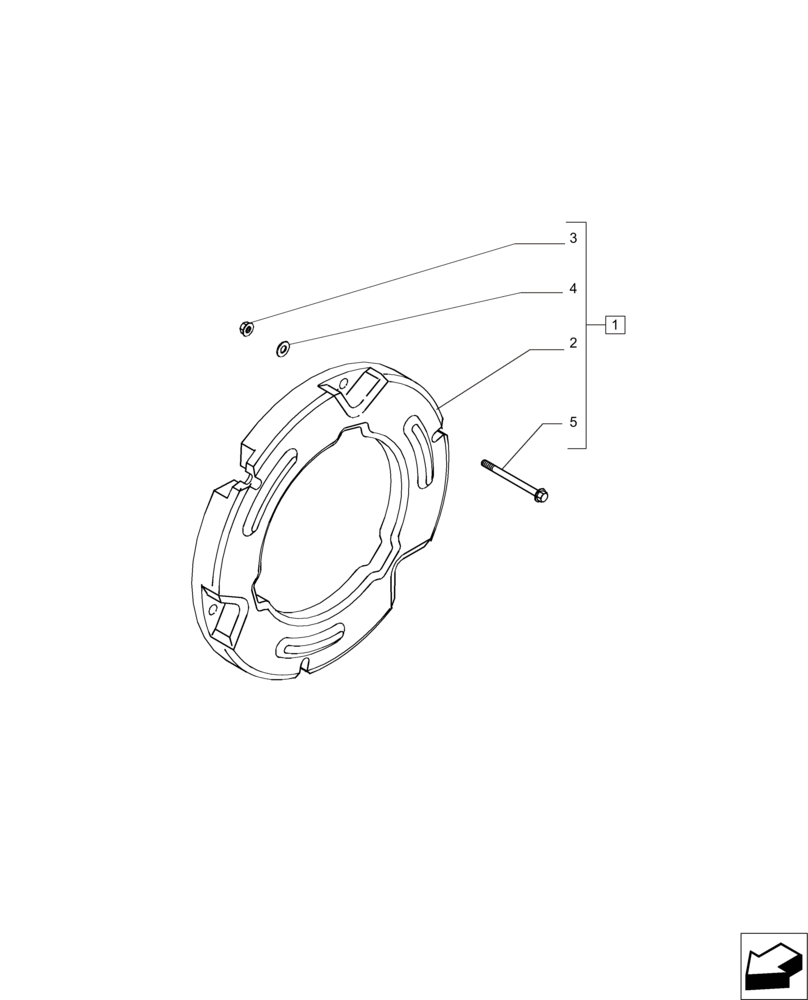

Схема запчастей Case IH MAGNUM 235 - (88.037.06) - DIA KIT, REAR WHEEL WEIGHTS, I PAIR 500LB/227KG (88) - ACCESSORIES
4
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719672006

DIA KIT, TRACTOR

Incl 2 - 5

1шт.

2

405828A1

WHEEL WEIGHT

91 KG

2шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

4

832-10416

NUT,M16 x 2, Cl 8

6шт.

5

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

6шт.
