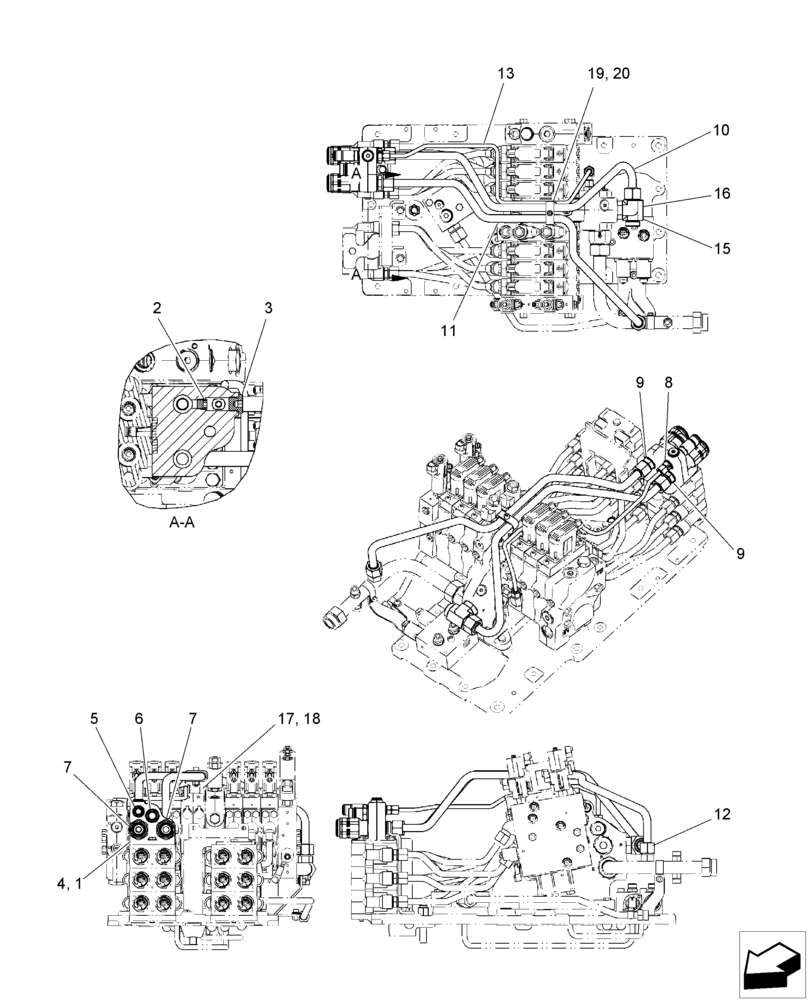

Запчасти Case IH MAGNUM 235 (88.035.05) - DIA KIT, HYDRAULIC POWER BEYOND, MOTOR RETURN VALVE (88) - ACCESSORIES

1

387929A1

VALVE

1шт.

2

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

3

221578A1

PLUG,M18 x 1.5 ORB

1шт.

4

814-10205

BOLT,Hex, M10 x 1.5 x 205mm, Cl 8.8

2шт.

5

294603A1

BODY

1/4 inch

1шт.

6

380739A1

COUPLING, BREAK AWAY

3/8 inch

1шт.

7

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

3/4 inch

2шт.

8

411712A1

VALVE, CHECK

1шт.

9

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

10

84378706

RIGID TUBE

1шт.

11

84345945

RIGID TUBE

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

84345944

RIGID TUBE

1шт.

14

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

1шт.

15

700-404

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

16

413993A1

90 ELBOW

1шт.

17

84376969

BRACKET

1шт.

18

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

1шт.

19

84395100

CLAMP

1шт.

20

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

1шт.
