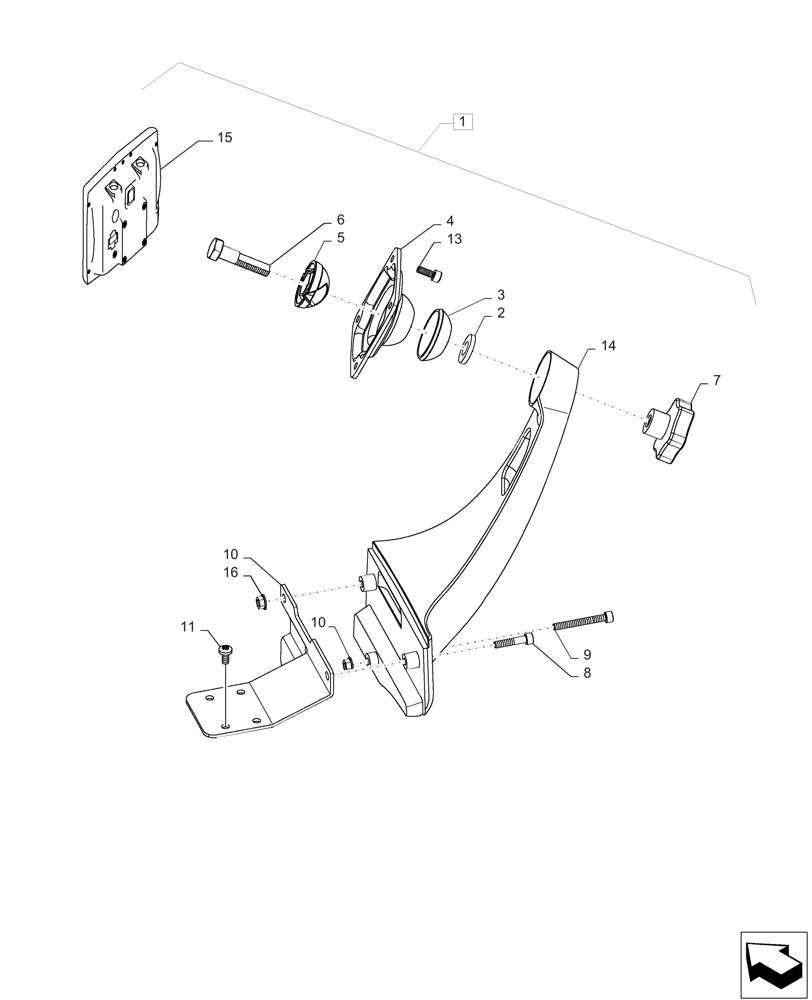

Запчасти Case IH MAGNUM 235 (55.785.AF[02]) - KIT, MONITOR MOUNTING (55) - ELECTRICAL SYSTEMS

1

84372055

KIT

Incl 2 - 16

1шт.

2

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

3

82039389

CUP WASHER,12.5mm ID x 50mm OD x 17mm Thk, Glass Filled Nylon

1шт.

4

87583911

BASE PLATE

1шт.

5

82038414

HALF BALL

1шт.

6

87568603

SPECIAL BOLT,Hex, M12 x 60

1шт.

7

87353504

KNOB

1шт.

8

356464

HEX SOC SCREW,M6 x 50mm, Cl 8.8

1шт.

9

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

4шт.

10

47513984

BRACKET

3шт.

11

13276021

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 8.8, Full Thd

3шт.

12

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

13

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

4шт.

14

84369437

MOUNT

1шт.

15

47514045

DISPLAY

1шт.

15

47932860

DISPLAY

T.Screen FRED II

1шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.
