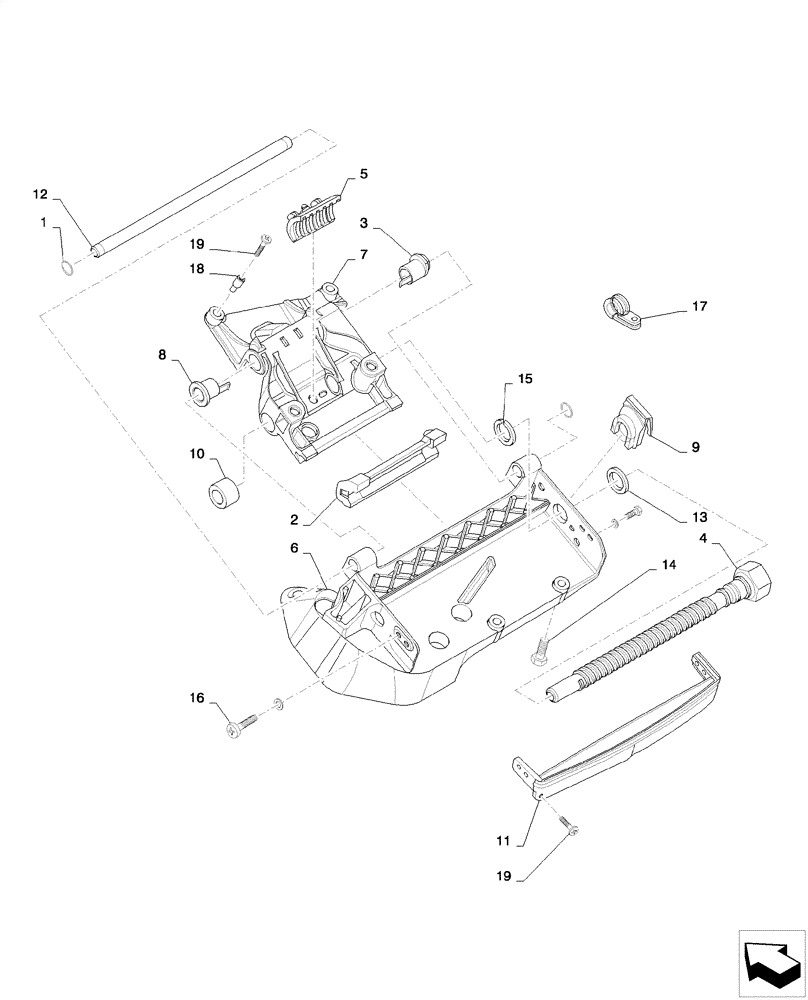

Запчасти Case IH MAGNUM 235 (55.512.CS[04]) - ARMREST CONTROL UNIT, SLIDE MECHANISM (55) - ELECTRICAL SYSTEMS

1

11066271

RING,Ext, 14mm Dia

2шт.

2

84236392

SLIDE GUIDE

1шт.

3

84146826

BUSHING,14.3mm ID x 20.36mm OD x 40.3mm L

1шт.

4

84163864

ADJUSTMENT SCREW,309 mm L

1шт.

5

84146843

HALF-BUSHING,48mm L

1шт.

6

84146844

SLIDE

1шт.

7

84146845

SLIDE

1шт.

8

84146834

BUSHING,14.3mm ID x 20.36mm OD x 43.3mm L

1шт.

9

84146837

SPACER,18mm ID x 29mm OD

1шт.

10

84206874

SPACER,18.2mm ID x 30mm OD x 19.5mm L

1шт.

11

84236407

SUPPORT

1шт.

12

84146847

SHAFT,14mm OD x 280mm L

1шт.

13

84146848

FRICTION WASHER,24.4mm ID x 32mm OD x 1.7mm Thk

2шт.

14

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

4шт.

15

81865873

CLIP,19.40mm D

1шт.

16

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

6шт.

17

84232921

CABLE CLIP,25mm ID

1шт.

18

15624411

RIVET,Flat, M6 OD x 16mm L

4шт.

19

47510297

HEX SOC SCREW,M6 x 1 x 25mm, Cl 8.8

4шт.
