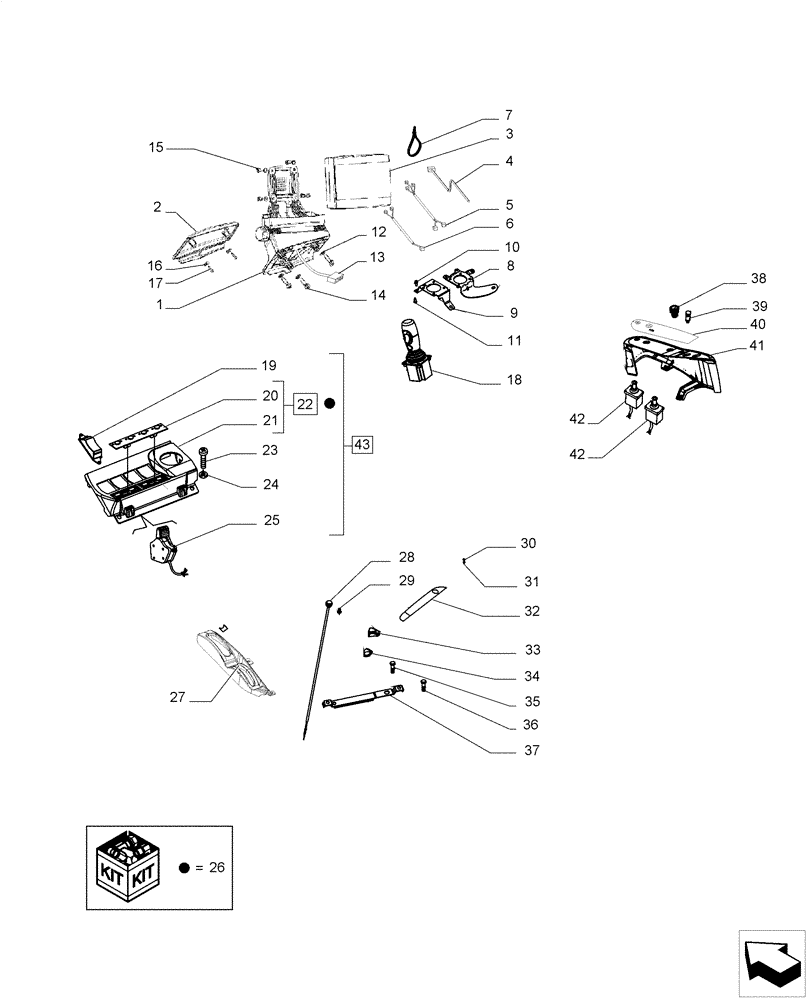

Запчасти Case IH MAGNUM 235 (55.512.CS[02]) - ARMREST CONTROL UNIT, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

1

87725500

HOLDER

1шт.

2

87493860

PANEL

1шт.

3

84296834

CONTROL MONITOR

1шт.

4

84228344

HARNESS

1шт.

5

84368485

HARNESS

1шт.

6

84350566

HARNESS

1шт.

7

86991009

CABLE TIE,222mm L, Nylon

1шт.

8

84150720

HOLDER

1шт.

9

84202338

BRACKET

1шт.

10

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

11

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

12

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

3шт.

13

84228344

HARNESS

1шт.

14

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

3шт.

15

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

2шт.

16

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

2шт.

17

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

18

84208738

JOYSTICK

1шт.

19

84226110

PLUG,32.5mm W x 92mm L

1шт.

20

87613728

PANEL

1шт.

21

84228884

PANEL

1шт.

22

84202321

TOGGLE SWITCH

Incl 20, 21

1шт.

23

50631

SCREW,Self Tapping, M6 x 0.5" OAL

12шт.

24

495-81251

WASHER,0.16" ID x 0.31" OD x 0.04" Thk

12шт.

25

87486098

ROCKER SWITCH

6шт.

26

84228894

KIT

Incl 20 - 22

8шт.

27

84165457

DECAL

1шт.

28

87485775

SWITCH ASSY

1шт.

29

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

30

82016959

SCREW,M3.5 x 12mm

8шт.

31

495-81251

WASHER,0.16" ID x 0.31" OD x 0.04" Thk

8шт.

32

84126448

DECAL

1шт.

32

84126449

DECAL

1шт.

33

84229449

KNOB

1шт.

34

84202341

KNOB

1шт.

35

13276021

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 8.8, Full Thd

2шт.

36

87564728

SCREW,Phillips Drive, Pan HD, #10 - 16 x 1/2"

3шт.

37

84226106

BRACKET

1шт.

38

87638633

KNOB

2шт.

39

47056319

WARNING LIGHT

2шт.

40

84232890

DECAL

1шт.

41

84216544

HOUSING

1шт.

42

84218194

SWITCH ASSY

1шт.

43

84202321

TOGGLE SWITCH

1шт.

44

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

Not illustrated

1шт.

45

15688207

SCREW,M8 x 19mm

Not illustrated

1шт.

46

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

Not illustrated

1шт.

47

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

Not illustrated

1шт.
