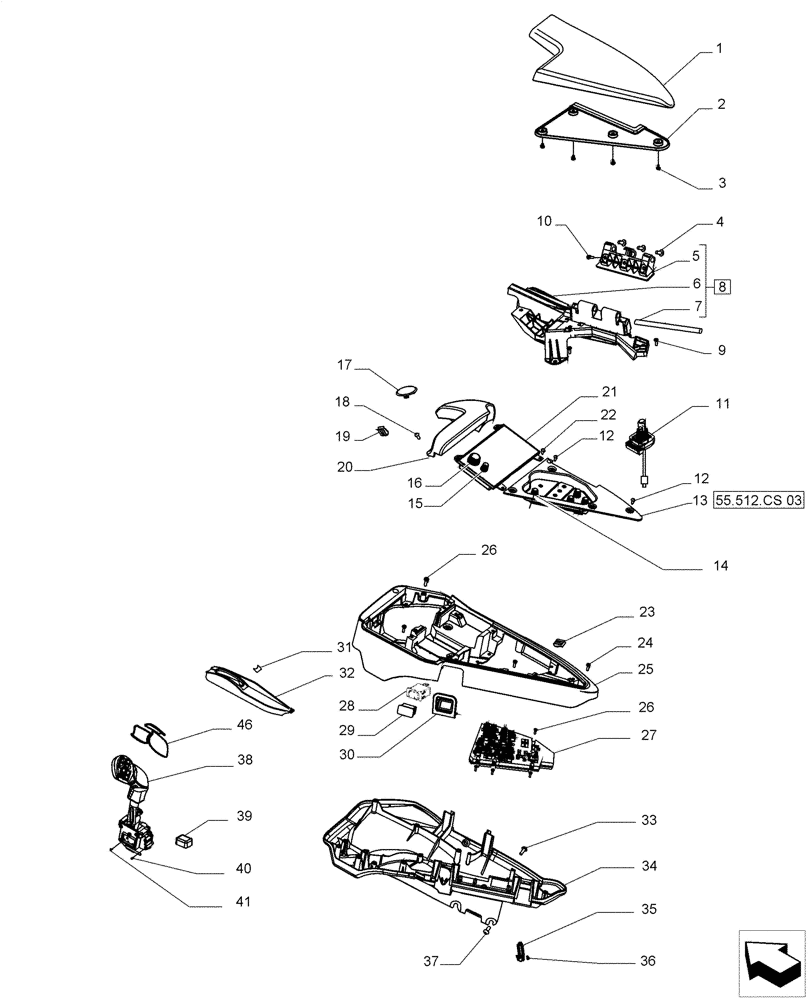

Запчасти Case IH MAGNUM 235 (55.512.CS[01]) - ARMREST CONTROL UNIT, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

1

87495096

CUSHION

1шт.

2

87486097

PANEL

1шт.

3

13272017

SCREW,Pozidriv Pan Hd, M4 x 12mm

4шт.

4

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

3шт.

5

87487262

HINGE

1шт.

6

84153062

HINGE

1шт.

7

84147684

PIN,10mm OD x 144mm L

1шт.

8

84204558

HINGE

Incl 5 - 7

1шт.

9

13272011

SCREW,Pozidriv Pan Hd, M4 x 12mm, Cl 5.8, Full Thd

4шт.

10

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

4шт.

11

87755846

POTENTIOMETER,5V, 30mA, 150mW

1шт.

12

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

4шт.

13

84168654

ELECTRIC PANEL

1шт.

14

82012988

KNOB

4шт.

15

87584684

KNOB

1шт.

16

87454709

KNOB

1шт.

17

87725444

BLANK-OFF PLUG,57.5mm OD, Black

1шт.

18

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

5шт.

19

84148337

SPRING NUT

5шт.

20

84202333

SUPPORT

1шт.

21

84241064

ECU

1шт.

22

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

3шт.

23

84148337

SPRING NUT

13шт.

24

13276411

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8

6шт.

25

84150708

SHELL

Upper

1шт.

26

132764

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

1шт.

27

84356314

MODULE

1шт.

28

87494094

SWITCH ASSY

1шт.

29

82022763

PLUG

1шт.

30

84150714

BEZEL

1шт.

31

84145169

DECAL

1шт.

32

84122981

BEZEL

1шт.

33

47510297

HEX SOC SCREW,M6 x 1 x 25mm, Cl 8.8

4шт.

34

47510303

SHELL

1шт.

35

87579853

RETAINER,14.9mm W x 56.7mm L

1шт.

36

15902607

SELF-TAP SCREW,Cross Pan Hd, M3.50 x 1.3 x 9.50mm

2шт.

37

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

2шт.

38

84567332

JOYSTICK

1шт.

38

84567332R

REMAN-JOYSTICK

Reman Joystick

1шт.

38

84567332C

CORE-JOYSTICK

Return Number

1шт.

39

84238354

CAP

1шт.

40

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

4шт.

41

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4шт.

42

87485778

HARNESS

Not illustrated

1шт.

43

87694703

CONTACT HOUSING,Female, 10 Pole

Not illustrated

1шт.

44

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

Not illustrated

4шт.

45

86991009

CABLE TIE,222mm L, Nylon

Not illustrated

2шт.

46

84493604

PAD SET

1шт.
