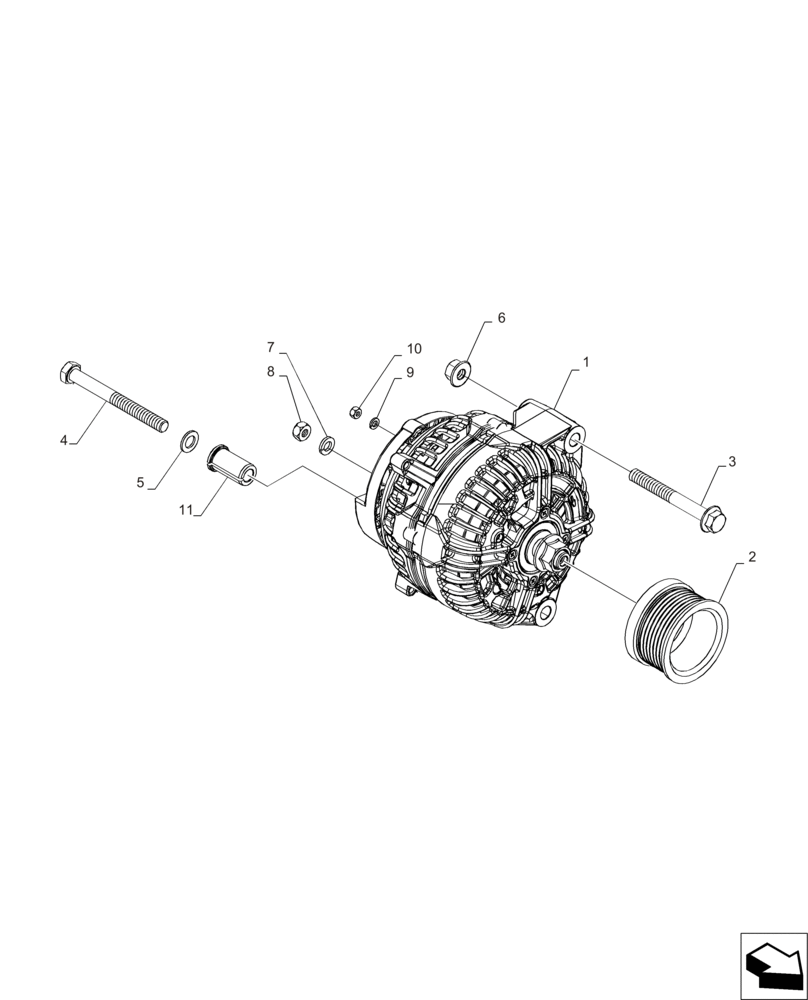

Запчасти Case IH MAGNUM 235 (55.301.AA[02]) - ALTERNATOR, MOUNTING (55) - ELECTRICAL SYSTEMS

1

84474354

ALTERNATOR,12V, 200A

200A 14V

1шт.

2

87485138

GROOVED PULLEY

1шт.

3

844-10085

BOLT,Hvy Hex, M10 x 85mm, Cl 8.8

1шт.

4

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

6

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

7

892-11008

LOCK WASHER,8mm ID

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

9

892-11005

LOCK WASHER,M5

1шт.

10

824-1405

NUT,M5, Cl 5

1шт.

11

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

1шт.
