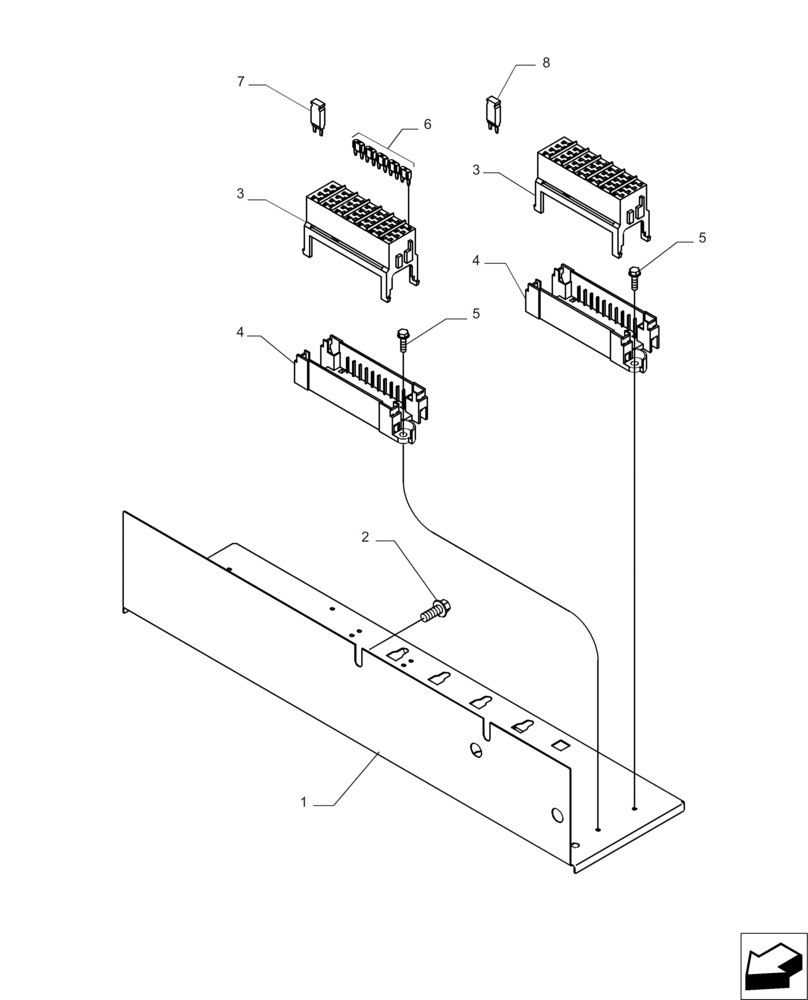

Запчасти Case IH MAGNUM 235 (55.100.DO[03]) - ELECTRICAL COMPONENT MOUNTING, FUSES (55) - ELECTRICAL SYSTEMS

1

84401813

BRACKET

1шт.

2

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

3шт.

3

144421A1

CONNECTING BLOCK

2шт.

4

194319A1

FUSE

2шт.

5

87016555

SELF-TAP SCREW,Hex, M4.8 x 1.6 x 19mm

2шт.

6

121410A1

FUSE,5A, Mini, Tan

1шт.

6

121412A1

FUSE,10A, Mini, Red

1шт.

6

121413A1

FUSE,15A, Mini, Blue

1шт.

6

121414A1

FUSE,20A, Mini, Yellow

1шт.

6

121415A1

FUSE,25A, Mini, Clear

1шт.

6

121416A1

FUSE,30A, Mini, Green

1шт.

6

338060A1

FUSE,60A, Mini, Blue

1шт.

7

139719A1

CIRCUIT BREAKER,15 Amp, Mini

1шт.

8

416569A1

DIODE ELEMENT,7300W

1шт.
