(55.032.AC) - TRAILER BRAKE SYSTEM, WIRE HARNESS - CANE VERSION

Запчасти Case IH MAGNUM 235 (55.032.AC) - TRAILER BRAKE SYSTEM, WIRE HARNESS - CANE VERSION (55) - ELECTRICAL SYSTEMS

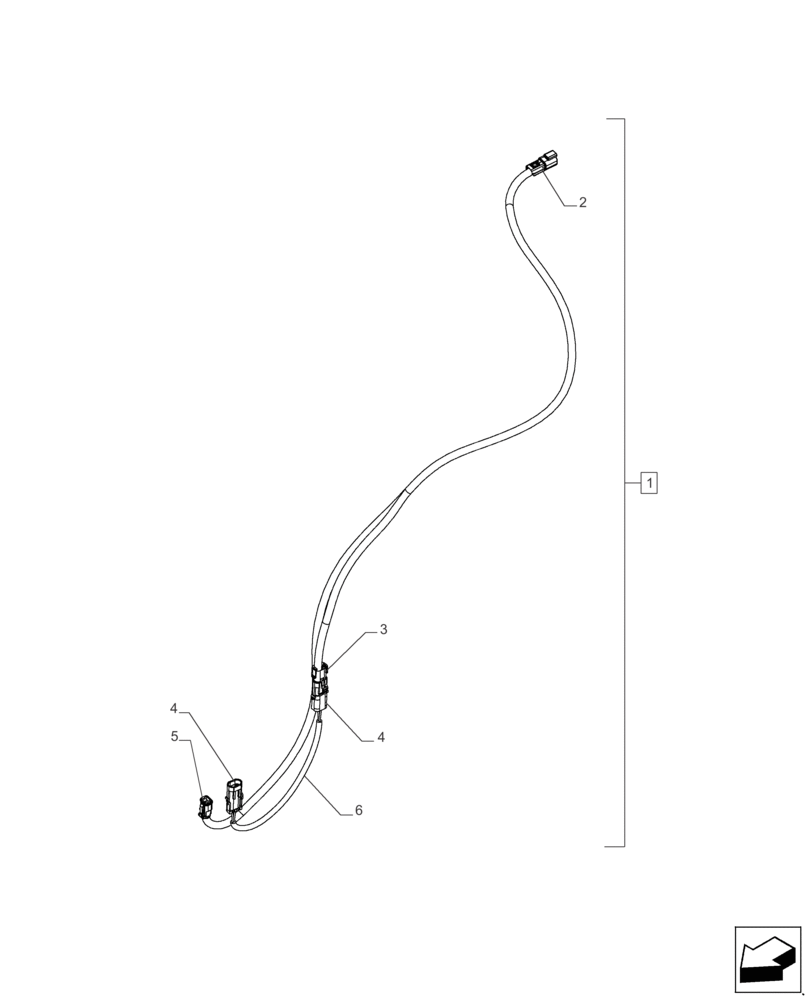

Схема запчастей Case IH MAGNUM 235 - (55.032.AC) - TRAILER BRAKE SYSTEM, WIRE HARNESS - CANE VERSION (55) - ELECTRICAL SYSTEMS
5
3
4
4
1
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86988136

HARNESS

Assy, Incl 2 - 6

1шт.

2

87695584

CONTACT HOUSING,Male, 2 Cavities

1шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

1шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

2шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

1шт.

6

47481818

WIRE HARNESS

1шт.
