Запчасти Case IH MAGNUM 235 (55.031.AB) - HARNESS, PARKING BRAKE (55) - ELECTRICAL SYSTEMS

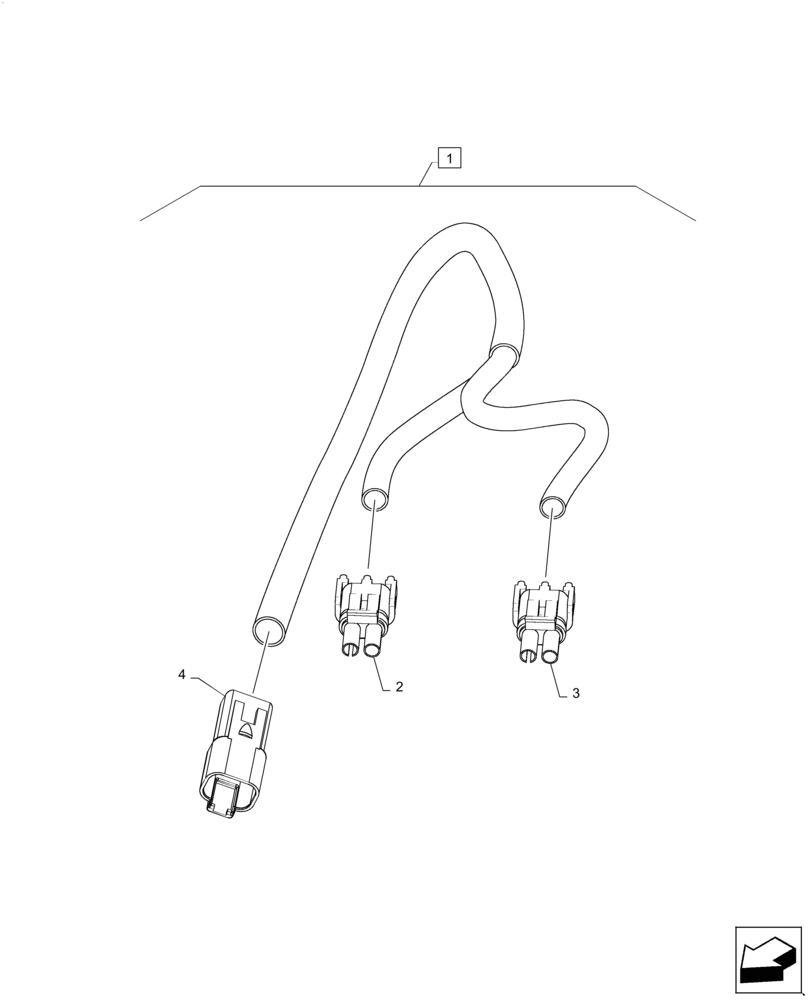

Схема запчастей Case IH MAGNUM 235 - (55.031.AB) - HARNESS, PARKING BRAKE (55) - ELECTRICAL SYSTEMS
1
4
3
2

Артикул

Название

Примечание

Количество

1

84522304

HARNESS

Park Break Switch; Incl 2 - 4

1шт.

2

87697537

ELEC CONNECTOR

47M, 2 PIN, To Right Brake Park Solenoid Switch

1шт.

3

87697537

ELEC CONNECTOR

48M, 2 PIN, To Left Brake Park Solenoid Switch

1шт.

4

87694154

CONTACT HOUSING,Male, 4 Pole

3088F, 4 Pin, To Chassis Harness

1шт.

Выбрано товаров: 4
