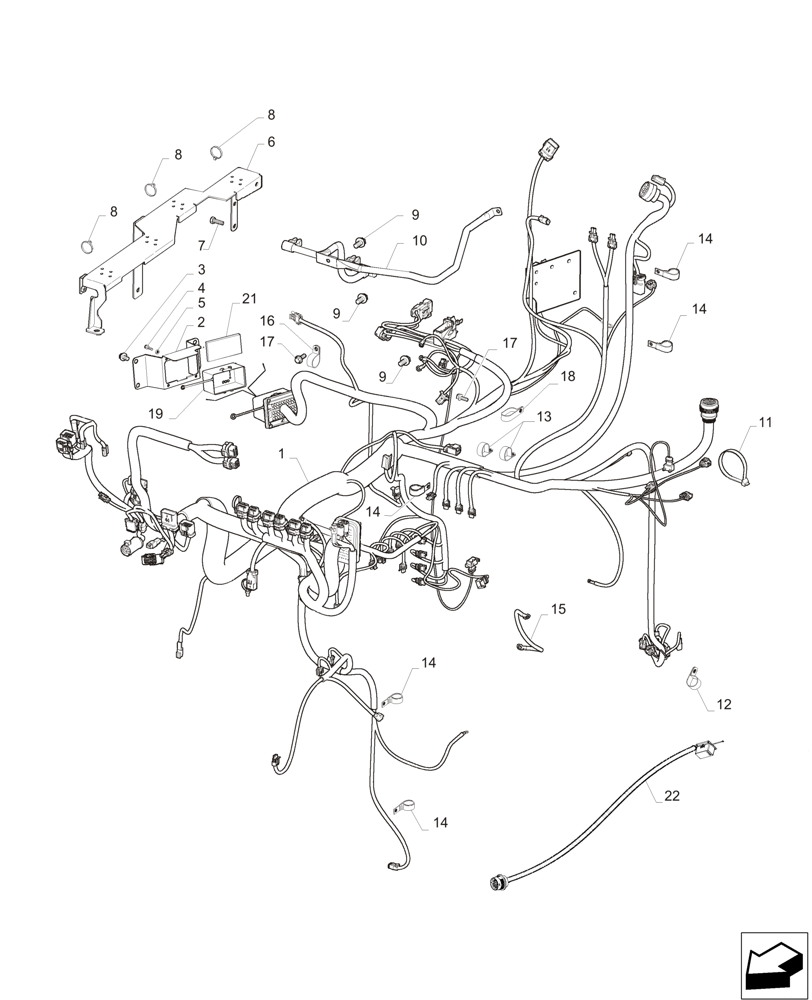

Запчасти Case IH MAGNUM 235 (55.015.AB[05]) - MAIN HARNESS (55) - ELECTRICAL SYSTEMS

1

47656073

WIRE HARNESS

1шт.

2

84268269

BRACKET

1шт.

3

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

4

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

4шт.

5

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

6

84401026

BRACKET

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

8

291207C1

CLAMP

3шт.

9

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

3шт.

10

84564344

NEG BATTERY CABLE

1шт.

11

86991007

CABLE TIE,509mm L

1шт.

12

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1шт.

13

515-22349

CLAMP,1 3/8", Insul, 5/16" Bolt

2шт.

14

229357A1

CLAMP

5шт.

15

84277463

STRAP

1шт.

16

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

18

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

19

84396884

COVER

1шт.

20

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

1шт.

21

47571069

SEAL

1шт.

22

47656080

WIRE HARNESS

Fuses Box Extension (BUSSMAN)

1шт.
