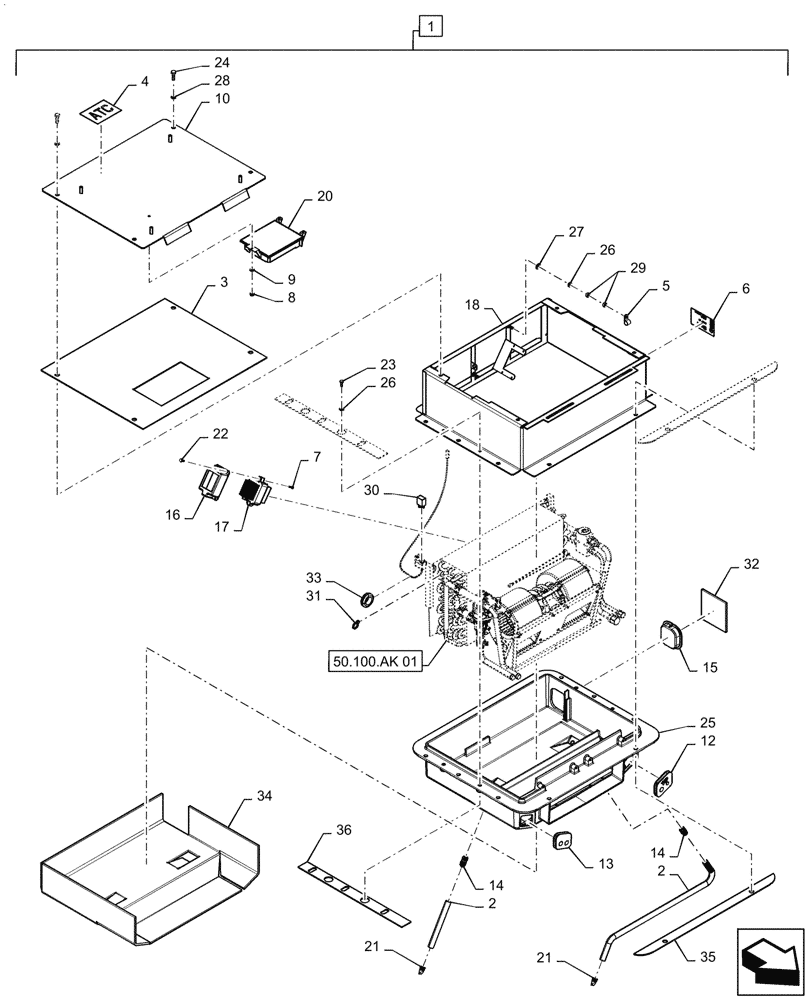

Запчасти Case IH MAGNUM 235 (50.100.AK[02]) - AIR CONDITIONING, CLIMATE CONTROL WITH AUTO TEMPERATURE CONTROL (50) - CAB CLIMATE CONTROL

1

47764033

AIR CONDITIONER

Incl 2 - 36

1шт.

2

1977334C1

HOSE

2шт.

3

87324951

GASKET,3mm Thk

1шт.

4

NSS

NOT SOLD SEPARAT

Decal, ATC Label, Incl in 1

1шт.

5

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

2шт.

6

NSS

NOT SOLD SEPARAT

Decal, Nameplate, Incl in 1

1шт.

7

86511331

SELF-TAP SCREW,Pan Hd, #8-18 OD x 3/4"

2шт.

8

87529300

WASHER,4.4mm ID x 9mm OD x 0.8mm Thk

1шт.

9

47630046

NUT,M4

1шт.

10

87306495

COVER

Top

1шт.

11

84598774

WIRE HARNESS

Jumper, Not Illustrated

1шт.

12

322989A1

GROMMET

1шт.

13

322990A1

GROMMET

1шт.

14

1250522C3

FITTING

2шт.

15

368313A1

PLASTIC PLUG

1шт.

16

47763664

HOUSING

1шт.

17

84342778

DRIVER

1шт.

18

47764565

COVER ASSY

1шт.

19

47763600

WIRE HARNESS

ATC, Not Illustrated

1шт.

20

47532798

MODULE

1шт.

21

109239C2

CHECK VALVE

2шт.

22

280-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.

23

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

25

322996A1

BOX

1шт.

26

892-11006

LOCK WASHER,M6

6шт.

27

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

28

892-11008

LOCK WASHER,8mm ID

4шт.

29

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

30

105849A1

RELAY

Micro, 12V

1шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

10шт.

32

87306773

FOAM INSULATION

1шт.

33

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

34

324484A1

INSULATOR

1шт.

35

322995A1

GASKET,3mm Thk

4шт.

36

322994A1

GASKET,3mm Thk

4шт.
