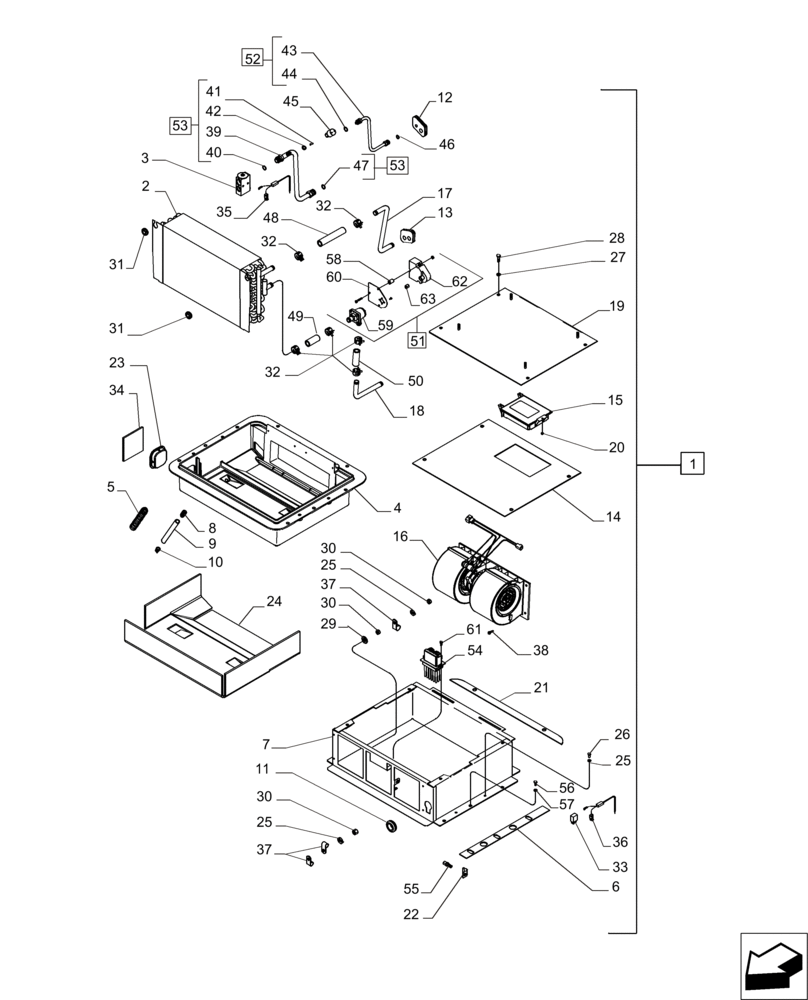

Запчасти Case IH MAGNUM 235 (50.100.AK[01]) - AIR CONDITIONING, CLIMATE CONTROL WITH AUTO TEMPERATURE CONTROL (50) - CAB CLIMATE CONTROL

1

47599322

AIR CONDITIONER

Incl 1 - 63

1шт.

2

86990262

CORE

1шт.

3

386535A1

VALVE

1шт.

4

322996A1

BOX

1шт.

5

87574393

HOSE,12.95 mm ID x 1055.00 mm

1шт.

6

322994A1

GASKET,3mm Thk

4шт.

7

87454443

CASE ASSY.

1шт.

8

1250522C3

FITTING

2шт.

9

1977334C1

HOSE

2шт.

10

109239C2

CHECK VALVE

2шт.

11

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

12

322989A1

GROMMET

1шт.

13

322990A1

GROMMET

1шт.

14

87324951

GASKET,3mm Thk

1шт.

15

84268957

MODULE

ATC, without Software

1шт.

16

323610A1

BLOWER

1шт.

17

322985A1

HEATER TUBE

1шт.

18

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

1шт.

19

87306495

COVER

1шт.

20

832-46404

NUT,M4 x .7, Cl 8

1шт.

21

322995A1

GASKET,3mm Thk

4шт.

22

87318294

CLIP

1шт.

23

87306773

FOAM INSULATION

1шт.

24

324484A1

INSULATOR

1шт.

25

892-11006

LOCK WASHER,M6

5шт.

26

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

27

892-11008

LOCK WASHER,8mm ID

4шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

29

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

30

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

31

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

32

1954736C1

HOSE CLAMP,#24

6шт.

33

105849A1

RELAY

1шт.

34

368313A1

PLASTIC PLUG

1шт.

35

323016A1

SENSOR

1шт.

36

87323958

HARNESS

1шт.

37

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

2шт.

38

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

39

NSS

NOT SOLD SEPARAT

Tube, Incl in 53

1шт.

40

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

41

1250594C2

CORE

1шт.

42

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

43

NSS

NOT SOLD SEPARAT

Tube, Incl in 52

1шт.

44

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

45

87323829

SWITCH, A/C LOW PRES

1шт.

46

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

47

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

48

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

1шт.

49

324022A1

HEATER HOSE,15.50 mm ID x 54.00 mm

1шт.

50

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

1шт.

51

427356A1

CONTROL VALVE

Incl 58 - 60, 62, 63

1шт.

52

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

Incl 43, 44

1шт.

53

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

Incl 39 - 42, 47

1шт.

54

87306706

TERMINAL CONNECTOR

1шт.

55

87454442

SENSOR

1шт.

56

781-24825

SELF-TAP SCREW,Hex Flg Hd, M8 x 25

8шт.

57

495-21031

WASHER,1/4"

1шт.

58

427354A1

SPACER

3шт.

59

427352A1

VALVE

1шт.

60

427353A1

PLATE

1шт.

61

280-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.

62

87377103

ELECTRIC MOTOR

1шт.

63

427360A1

INSERT

1шт.
