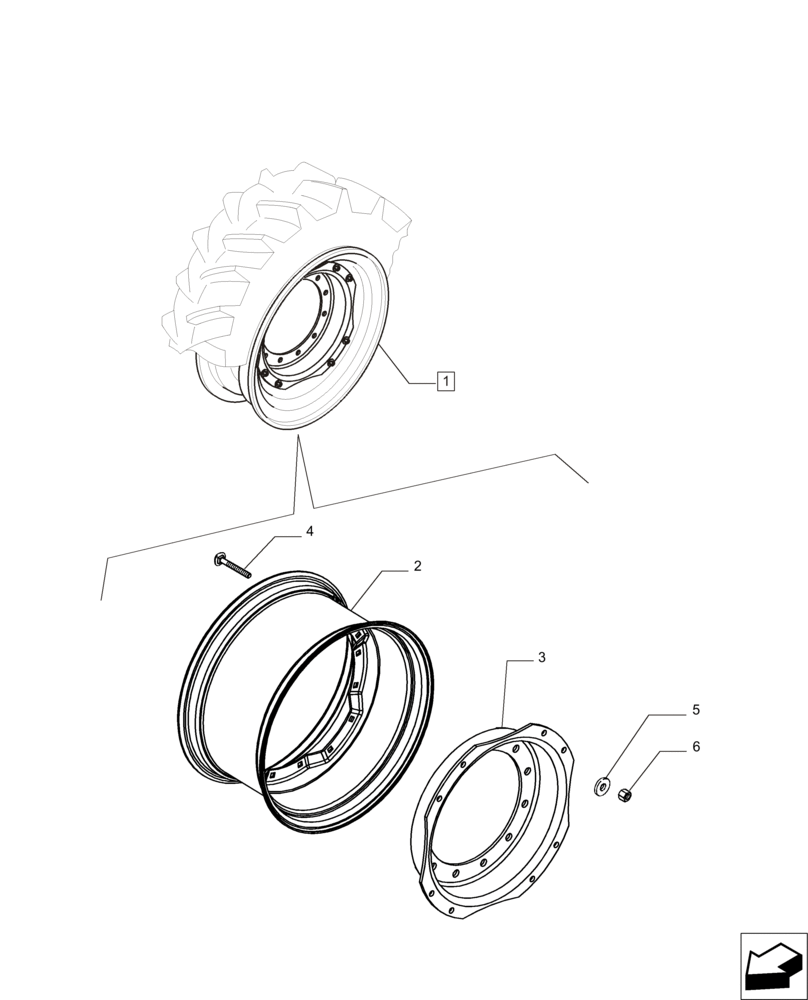

Запчасти Case IH MAGNUM 235 (44.511.AE[04]) - FRONT WHEELS - W18LX28 (44) - WHEELS

1

188347A2

WHEEL ASSY

Incl 2 - 6, 12.4 x 24 / 12.4 x R24

2шт.

2

188350A2

RIM

1шт.

3

188328A1

WHEEL DISC

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.
